Product Summary

The Mitutoyo 568-468 Borematic bore gauge measures internal diameters from 1.2–1.6" (30.48–40.64 mm) using a self-centring three-point measuring head. It provides direct digital readings with .00005" (0.001 mm) resolution, ±.0003" (±6 µm) accuracy, GO/NO-GO judgement and Digimatic SPC output. It is suitable for bearing seats, pneumatic and hydraulic cylinder bores, compressor valve pockets and machined sleeves. Contact General Tech at +966 569 289 544 for pricing and availability.

 Product Description

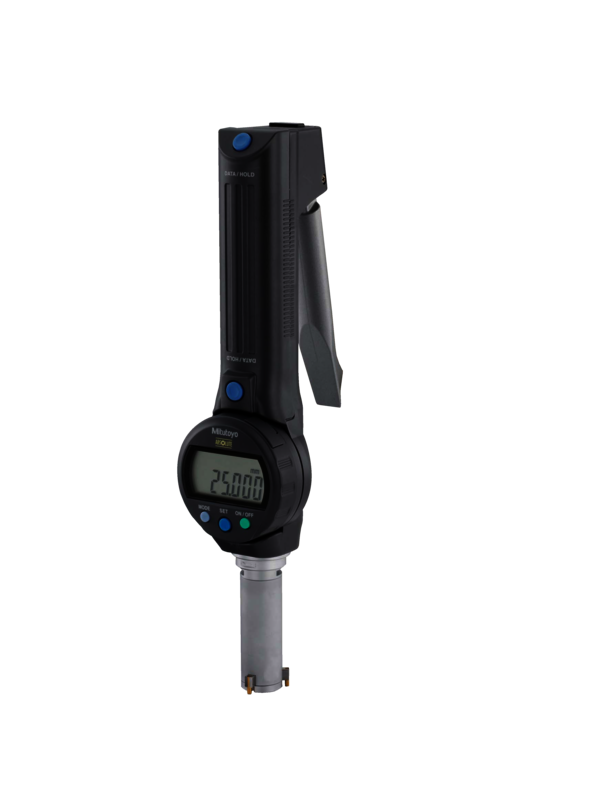

The Mitutoyo 568-468 Digital ABS Borematic is designed for accurate internal-diameter inspection across the 1.2–1.6" (30.48–40.64 mm) range. Its three-point measuring system self-centres inside the bore, helping operators identify dimensional variation that may not be apparent from a single two-point measurement.

The gauge provides direct diameter readings with ±.0003" (±6 µm) accuracy and .00005" (0.001 mm) resolution. By taking readings at different angular positions and depths, operators can evaluate bore conditions such as ovality and taper in components including bearing seats, pneumatic cylinders, compressor valve pockets, gear bores and machined sleeves.

The electrostatic-capacitance ABSOLUTE encoder retains the established origin during normal battery life and is designed to avoid over-speed errors. This reduces the need for repeated origin setting during routine inspection.

A 330° rotatable LCD display with 8.5 mm digits makes the measurement easier to view when the component or gauge is positioned at an awkward angle. Inch and metric units can be selected directly on the gauge.

The TiN-coated measuring contact points provide wear-resistant contact surfaces and can reach close to the bottom of blind holes. For deeper cylinders, housings and other recessed components, the optional 150 mm extension rod 952623 provides additional reach.

The snap-open lever allows the operator to squeeze, insert and release the measuring head inside the bore. The three contact points then self-centre to provide the internal-diameter reading. GO/NO-GO judgement can be configured using upper and lower limits, while data hold allows the displayed measurement to be retained for inspection records.

For quality-control and production environments, the Digimatic SPC output can transfer measurement data using compatible SPC cables, USB Input Tool Direct 06ADV380F or U-WAVE-T wireless connectivity through the appropriate connecting cable.

The gauge operates from one SR44 battery and is specified for approximately 5,000 hours of battery life. It also provides Zero/ABS, two-point preset, error alarm, low-battery alert, function lock and inch/mm conversion functions.

For adjacent measurement ranges, the Mitutoyo 568-467 covers 1.0–1.2" bores, while the 568-470 covers a larger 2.0–2.5" range.

 Key Benefits

• Measures 1.2–1.6" (30.48–40.64 mm) internal diameters directly.

• Three-point self-centring helps provide repeatable bore measurements.

• ±.0003" (±6 µm) accuracy with .00005" (0.001 mm) resolution.

• Useful for checking ovality by taking readings at different angular positions.

• Suitable for evaluating taper by checking measurements at different depths.

• ABSOLUTE encoder helps retain the established origin during battery life.

• 330° rotatable LCD display improves visibility around fixtures.

• TiN-coated contacts can reach close to the bottom of blind holes.

• Snap-open operation supports quick and repeatable bore inspection.

• GO/NO-GO judgement supports user-defined upper and lower tolerance limits.

• Digimatic SPC output supports digital quality records and inspection data collection.

• Inch and metric measurement modes are available.

• Optional 150 mm extension rod 952623 provides additional measuring reach.

• Function lock helps prevent accidental setting changes.

• SR44 battery provides approximately 5,000 hours of operation.

For pricing and availability in Saudi Arabia, contact General Tech at +966 569 289 544 or mathews@generaltechsaudi.com.

 Who This Product Is Best For

The Mitutoyo 568-468 is suitable for automotive component suppliers, compressor and pump service teams, CNC machine shops, maintenance engineers and quality-control departments in Saudi Arabia and the GCC.

Typical applications include small bearing seats, pneumatic and hydraulic cylinder bores, compressor valve pockets, gear bores, machined sleeves and other internal diameters within the 1.2–1.6" measurement range.

It is particularly useful where operators need repeatable three-point measurements, quick tolerance judgement and digital data transfer for quality-control records.

How to Use / How It Works

1. Establish the reference origin
Place the measuring head in a suitable certified setting ring, press the ORIGIN function and enter the certified ring value. The ABSOLUTE encoder retains the established origin during normal battery life.

2. Select units and tolerances
Choose inch or millimetre measurement and enter the required upper and lower limits if GO/NO-GO judgement is required.

3. Measure the bore
Squeeze the snap-open lever, insert the measuring head into the bore and release the lever. The three contact points self-centre against the internal diameter.

4. Check different positions
For ovality inspection, rotate the gauge and compare readings at different angular positions. For taper inspection, take readings at more than one depth inside the bore.

5. Record the result
Use the data-hold function when required, or transfer the measurement through the Digimatic SPC output to compatible data-collection equipment or software.

Frequently Asked Questions

What is the measuring range of the Mitutoyo 568-468?
The 568-468 measures internal diameters from 1.2–1.6" (30.48–40.64 mm), with selectable inch and metric display.

Can the 568-468 detect ovality?
Yes. Take a measurement, rotate the gauge to another angular position and compare the readings. Differences between positions can indicate out-of-round conditions.

Can it check bore taper?
Yes. Taking measurements at different depths can help identify changes in internal diameter along the bore.

How accurate is the Mitutoyo 568-468?
Mitutoyo specifies ±.0003" (±6 µm) accuracy with .00005" (0.001 mm) resolution.

Does the 568-468 include a setting ring?
The setting ring is sold separately. A suitable ring should be used to establish the gauge's reference origin before measurement.

Can it measure deep or blind bores?
The TiN-coated contacts can reach close to the bottom of blind holes. For additional reach, the optional 150 mm extension rod 952623 can be used.

Does the gauge support GO/NO-GO inspection?
Yes. Upper and lower tolerance limits can be configured, allowing the display to provide GO/NO-GO judgement.

How can measurements be transferred to a computer?
The gauge provides Digimatic SPC output. Compatible options include SPC cables 905338 and 905409, USB Input Tool Direct 06ADV380F and U-WAVE-T wireless connectivity using the appropriate connecting cable.

Which Borematic model should I choose?
The 568-468 covers 1.2–1.6" (30.48–40.64 mm). The 568-467 covers 1.0–1.2", while the 568-470 covers 2.0–2.5".

Is there a complete set available?
The 568-468 is also listed as part of the Mitutoyo 568-967 complete unit set covering the applicable 1–2" range.

Where can I buy the Mitutoyo 568-468 in Saudi Arabia?
Contact General Tech at +966 569 289 544 or mathews@generaltechsaudi.com for pricing and availability in Saudi Arabia.
