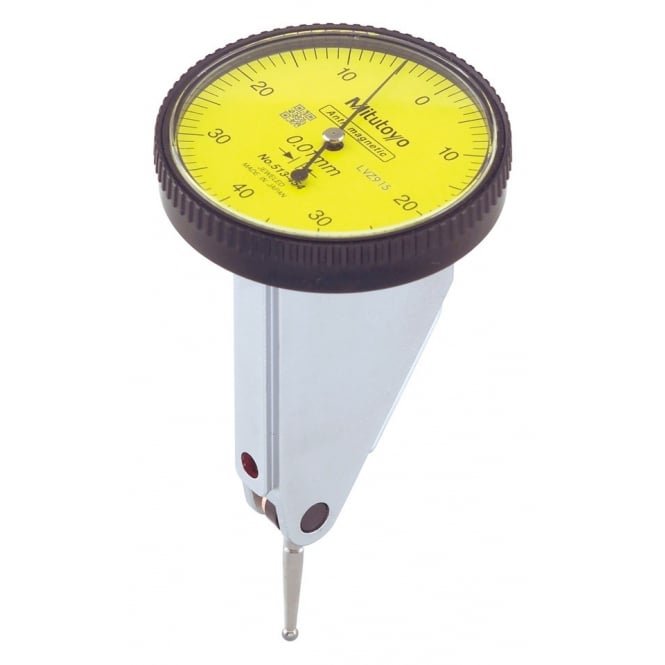

Mitutoyo 513-455E Vertical Style Lever Indicator Range 0.2mm, Graduation 0.002 mm

Name: Mitutoyo 513-455E Vertical Style Lever Indicator Range 0.2mm, Graduation 0.002 mm
Brand: Mitutoyo
SKU: 513-455E
Availability: OutOfStock

Part Number : 513-455E

A versatile anti-magnetic type Mitutoyo lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-3
Brand	Mitutoyo
Data Output	No
Dial Reading	0-100-0
Display Type	Non-digital
Graduations	0.002mm
Measuring Force	0.3N or less
Measuring Units	Millimetre
SKU	513-455E
Type	Lever

The vertical face indicator is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck.
The parallel face indicator is convenient to use when the application calls for stylus movement in a plane parallel to that of the dial face.
