Part Number : 2119A-11

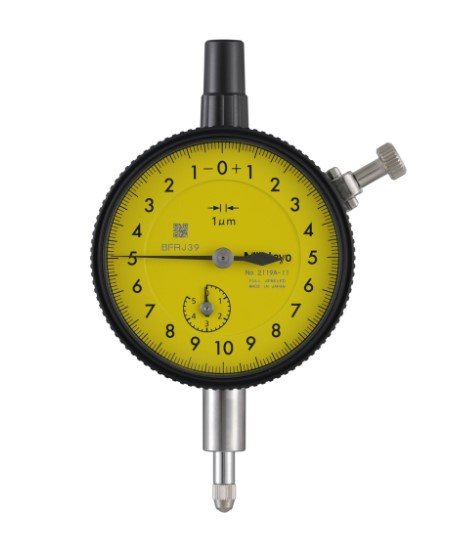

The Mitutoyo 2119A-11 is a high-precision dial gauge designed for accurate linear measurements. It offers a 5 mm measuring range with a 0.001 mm graduation, making it suitable for fine inspection tasks. The lug-back design allows for stable mounting on indicator holders and stands, ensuring reliable measurements. Built to ANSI/AGD Type 2 standards, it ensures compatibility with standard fixtures and holders. The gauge features a clear, easy-to-read dial, enhancing visibility and reducing reading errors. Its durable construction includes a scratch-resistant, anti-glare crystal for long-lasting clarity.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Carbide tipped
Graduation	0.001 mm
Hysteresis	2.5 µm
Inch-Metric	Metric
Measuring Force	0.4 - 1.5
Range	5 mm
Repeatability	+/-0.3 µm
Stem Dia	9.52 mm Or 0.375 Inch
Thread type	4-48UNF
Type	ANSI/AGD Standard
Type	Dial Gauge

5 mm Measuring Range – Ideal for a variety of precision measurements in smaller ranges.
0.001 mm Graduation – Provides high-resolution readings for fine inspection tasks.
Lug Back Design – Enables secure and stable mounting on indicator holders or stands.
Jeweled Bearings – Ensures smooth, low-friction operation and enhances durability.
ANSI/AGD Type 2 Compliant – Built to industry standards for compatibility and reliability.
Scratch-Resistant, Anti-Glare Crystal – Offers improved readability and long-term clarity in diverse environments.

DOWNLOAD CATALOG
