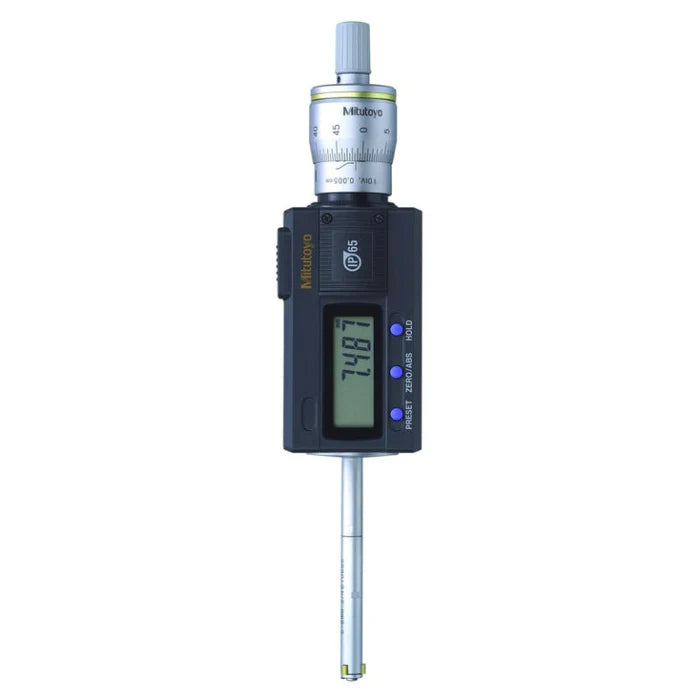

Mitutoyo 468-163 Digimatic Holtest Internal Micrometer, Range 10-12mm

The Mitutoyo 468-163 is a Series 468 Digimatic Holtest three-point internal micrometer with a 10-12 mm measuring range and 0.001 mm resolution. Genuine Mitutoyo from General Tech, authorised distributor in Saudi Arabia. Request a quote - call +966 531 321586.

Part No. 468-163
Call +966 531 321586 for pricing and stock availability.

Two-point bore gauges depend on the operator finding the true diameter by rocking the gauge, so readings can vary from person to person. The Mitutoyo 468-163 uses three self-centring anvils spaced at 120°, which automatically locate inside the bore and measure the true inside diameter across a 10-12 mm range.

The contact points are TiN (titanium nitride) coated for durability and impact resistance, and they allow measurement right to the bottom of a blind hole. A ratchet stop applies constant measuring force, while the large LCD provides readings to 0.001 mm. The Digimatic data output allows measurement values to be transferred to an SPC or data collection system.

The Mitutoyo 468-163 is suitable for inspecting bores, bushings, cylinders, and blind holes in drilled and bored components. Its functions include zero/ABS setting, presetting, data hold, and data output, along with low-battery and error alarms. An optional extension rod can be used for measuring deeper holes.

For accurate measurement, keep the measuring head square to the bore axis and measure at more than one depth to check for taper or ovality. Allow the instrument and workpiece to reach the same temperature before measuring.

Because a three-point internal micrometer requires setting against a known diameter, a setting ring is needed for origin setting. Setting rings are optional, so ask our team to quote the appropriate setting ring with your order. Our team can also arrange calibration.

Comparing options? See the Mitutoyo 468-166 (20-25 mm) before you order.

Key Benefits

• Self-centring three-point contact for true bore diameter

• TiN-coated contact points for durability

• Ratchet stop for repeatable measuring force

• Digimatic data output for SPC and data collection

• 10-12 mm measuring range

• 0.001 mm resolution

• Suitable for blind-hole measurement

Call +966 531 321586 for pricing and stock availability.

Who This Product Is Best For

• Machine shops inspecting bores, bushings, and cylinders

• Quality labs needing operator-independent bore readings

• Inspection of blind holes in drilled and bored parts

How to Specify & Install It

1. Set the origin using a setting ring of known diameter.

2. Insert the measuring head squarely into the bore.

3. Turn the ratchet stop until it clicks and allow the anvils to self-centre.

4. Read the display or send the measurement value through the Digimatic data output.

Frequently Asked Questions

How does a three-point bore micrometer work?
Three anvils spaced at 120° contact the bore simultaneously and self-centre, allowing the instrument to measure the inside diameter.

Do I need a setting ring?
Yes. A setting ring is used for origin setting. Setting rings are optional accessories, so our team can quote a suitable ring with the micrometer.

Should I choose the 468-163 or the 468-166?
The 468-163 covers 10-12 mm, while the 468-166 covers 20-25 mm. Match the measuring range to the bore sizes you need to inspect.

How should I care for the instrument?
Wipe the measuring faces clean after use, store the instrument in its case away from heat, humidity, and coolant, and remove the battery if it will be stored for an extended period. Regular calibration can help maintain measurement accuracy.

Can the instrument be calibrated?
Yes. General Tech Saudi provides calibration services for dimensional instruments. Ask our team about calibration when you order.

Can you supply other Mitutoyo instruments in the same order?
Yes. Our store carries a wide range of Mitutoyo micrometers, bore gauges, calipers, and indicators. Tell us what you need and we will quote them together.

Is genuine Mitutoyo available in Saudi Arabia?
Yes. General Tech is an authorised Mitutoyo distributor. Call +966 531 321586 for current pricing, availability, and lead time.
