Part Number : 3426AB-19

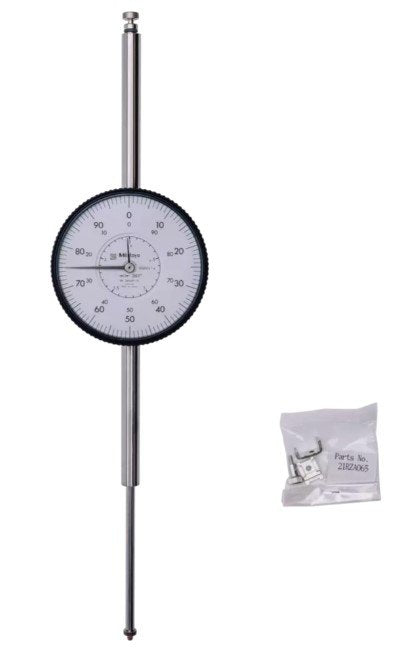

Mitutoyo 3426AB-19 Dial Gauge provides precise and reliable measurements for a variety of tasks. Features a Flat Back design, perfect for stable mounting in fixtures or on gauges. Complies with ANSI/AGD Type standards for consistent quality and compatibility. Part of Series 3, with a Graduation of 0.001 inch for fine, accurate resolution. Offers a Range of 3 inches and is equipped with Jewelled Bearings for smooth and durable operation.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4-48UNF
Dial Reading	+/-0-100
Digital/Analog	Analog
Graduation	0.001
Hysteresis	0.00033 Inch
Inch-Metric	Inch
Mass (main unit)	324 g
Measuring Force	0.4 - 3 N
Range	3 Inch
Repeatability	+/-0.0002 Inch
Series	3
Stem Dia	9.52 mm Or 0.375 Inch
Type	Dial Gauge

Model: 3426AB-19 from Mitutoyo Series 3
Range: 3 inches – ideal for extended measurement applications
Graduation: 0.001 inch – for precise and high-resolution measurements
Back Type: Flat Back – for secure and stable mounting in various setups
Bearings: Jewelled Bearings ensure smooth dial movement and increased longevity
Standard: Meets ANSI/AGD Type specifications for compatibility and performance
Build Quality: Durable and rugged construction for consistent performance in industrial environments

DOWNLOAD CATALOG
