Part Number : 3415AB

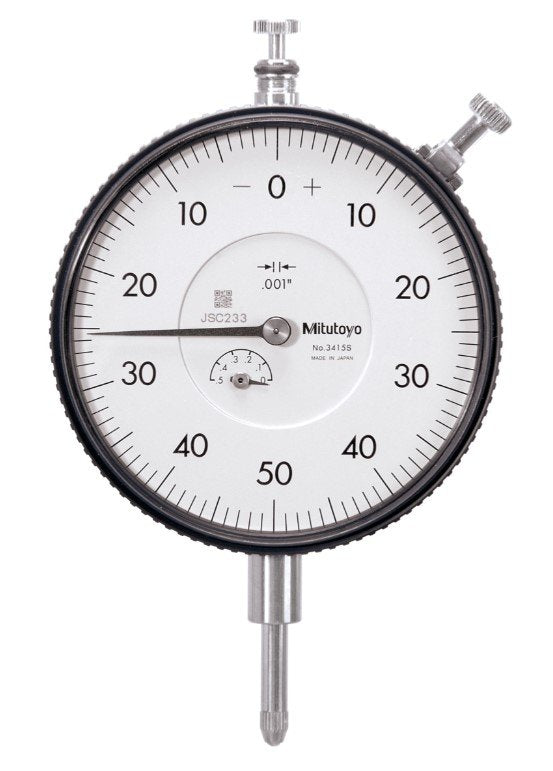

Mitutoyo 3415AB Dial Gauge provides precise measurement for close-tolerance tasks. Features a Flat Back design for secure mounting in fixtures or stands. Complies with ANSI/AGD Type standards for universal compatibility. Part of Series 3, offering a fine Graduation of 0.001 inch. Measures up to a Range of 0.5 inch, ideal for inspection and alignment.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4-48UNF
Dial Reading	0-50-0
Digital/Analog	Analog
Graduation	0.001 Inch
Hysteresis	0.0002 Inch
Inch-Metric	Inch
Mass (main unit)	244 g
Measuring Force	0.4 - 1.8 N
Range	0.5 Inch
Repeatability	+/-0.0002 Inch
Series	3
Stem Dia	9.52 mm Or 0.375 Inch
Type	Dial Gauge

Type: Dial Gauge with Flat Back, facilitating stable and secure mounting on fixtures.
Series: Part of Series 3, featuring a large, easy-to-read dial face with a diameter of 78 mm.
Graduation: 0.001 inch, providing high-resolution measurements suitable for precision tasks.
Measuring Range: 0.5 inch, ideal for applications requiring fine measurement accuracy.
Accuracy: ±0.001 inch, ensuring reliable and consistent measurements.
Dial Reading: 0-50-0, allowing for clear and straightforward interpretation of measurements.
Measuring Force: 1.8 N or less, minimizing the risk of measurement errors due to excessive force.
Compliance: Conforms to ANSI/AGD standards, ensuring compatibility with standard accessories and fixtures.
Additional Features: Supplied with limit markers and a bezel clamp as standard, and delivered with a certificate of inspection.
