Part Number : 3414A

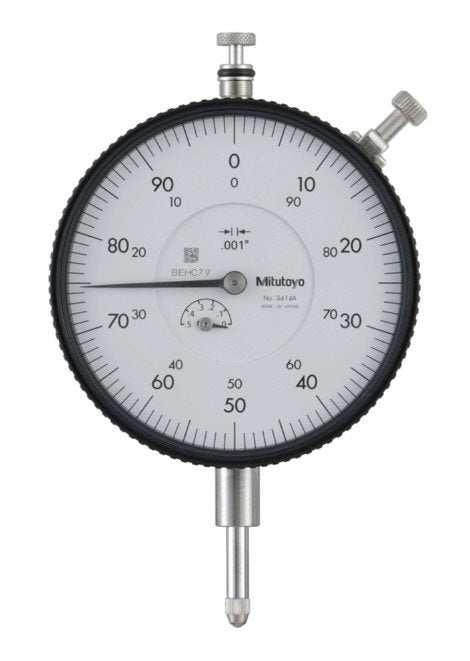

The Mitutoyo 3414A is a high-precision dial gauge designed for accurate measurement in both industrial and laboratory settings. Featuring a lug back design, it allows for stable mounting on various holders and stands. With a 0.001 inch graduation and a 0.5 inch range, it provides exceptional precision for small-scale measurements. This gauge complies with ANSI/AGD Type standards, ensuring compatibility with industry measurement systems. Its durable construction ensures long-lasting performance, making it ideal for critical measurement applications.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4.0-48.0UNF
Dial Reading	+/-0.0-100.0
Digital/Analog	Analog
Graduation	0.001 inch
Hysteresis	0.0002 inch
Inch-Metric	Metric
Mass (main unit)	259 g
Measuring Force	0.4 - 1.8 N
Range	0.5 inch
Repeatability	+/-0.0002 inch
Series	3
Stem Dia	9.52 mm Or 0.375 inch
Type	Dial Gauge

Type: Dial Gauge with Lug Back, facilitating versatile mounting options.
Series: Part of Series 3, featuring a large, easy-to-read dial face.
Graduation: 0.001 inch, providing high-resolution measurements suitable for precision tasks.
Measuring Range: 0.5 inch, ideal for applications requiring fine measurement accuracy.
Compliance: Conforms to ANSI/AGD standards, ensuring compatibility with standard accessories and fixtures.
Jeweled Bearing: Incorporates a jeweled bearing for smooth and precise movement, enhancing durability.
Shockproof Design: Equipped with a shockproof mechanism to protect internal components from sudden impacts.
Durable Construction: Built for long-term use in industrial and metrology environments.
