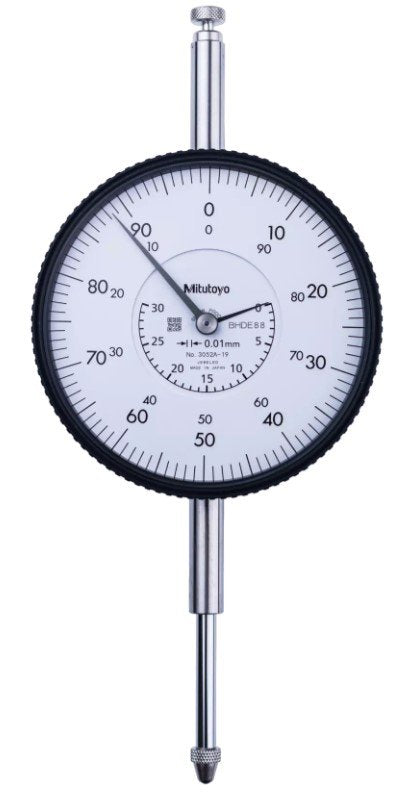

Mitutoyo 3052A-19 | Dial Gauge | Lug Back | ISO Type | Series 3 | Jewelled Bearing | Graduation 0.01 mm | Range 30 mm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 3052A-19

The Mitutoyo 3052A-19 is a high-precision dial gauge designed for extended-range measurement tasks in demanding industrial environments. Featuring a lug back for secure mounting and an ISO-compliant Series 3 design, it ensures compatibility with global standards. With a wide 30 mm measuring range and fine 0.01 mm graduations, it’s ideal for both coarse and fine adjustments. The inclusion of jeweled bearings guarantees ultra-smooth operation and long-term accuracy. Built to endure, it excels in both inspection and production applications.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: M 2.5 x 0.45 mm
Dial Reading	+/-0.0-100.0
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	5 µm
Inch-Metric	Metric
Mass (main unit)	285 g
Measuring Force	0.4 - 2.5 N
Measuring range	25 µm
Range	30 mm
Repeatability	3.0 µm
Series	3
Stem Dia	8.0 mm
Type	Dial Gauge

Type: Dial Gauge with Lug Back for versatile mounting options.
Series 3: Features a large, easy-to-read dial face with a 78 mm diameter.
Graduation: 0.01 mm, allowing for precise measurement resolution.
Measuring Range: 30 mm, suitable for a variety of inspection tasks.
Accuracy: ±0.025 mm, ensuring reliable measurements.
Shockproof Design: Equipped with a shockproof mechanism to protect internal components from sudden impacts.
Jeweled Bearing: Incorporates a jeweled bearing for smooth and precise movement, enhancing durability.
Coaxial Revolution Counter: Includes a coaxial revolution counter for easy tracking of spindle rotations.
Measuring Force: 2.5 N or less, minimizing the risk of measurement errors due to excessive force.
Compliance: Meets ISO/JIS standards for quality and consistency.

DOWNLOAD CATALOG
