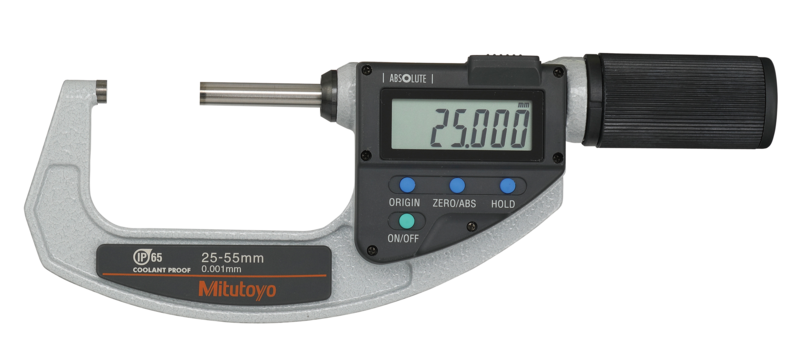

Mitutoyo 293-667-20 Digital Absolute Micrometer QuickMike 25-55mm
Mitutoyo 293-667-20 QuickMike Micrometer, 25–55 mm, Digimatic ABSOLUTE, 0.001 mm, IP65
Mitutoyo 293-667-20 QuickMike Micrometer 25-55mm | KSA
PRODUCT SUMMARY
The Mitutoyo 293-667-20 QuickMike micrometer measures 25–55 mm with 0.001 mm resolution and ±2 µm accuracy. Its extended 30 mm range covers the 50 mm crossover, helping reduce tool changes when inspecting mid-size metric components. A 10 mm-per-turn spindle, ABSOLUTE scale, IP65 protection and Digimatic SPC output make it suitable for demanding workshop and quality-control environments. Contact General Tech at +966 569 289 544 for a quote.
PRODUCT DESCRIPTION
The Mitutoyo 293-667-20 QuickMike is a metric digital outside micrometer designed for measuring components from 25 to 55 mm. Its wider-than-standard range covers the important 50 mm crossover, allowing one micrometer to handle parts that may otherwise require two different measuring ranges.
The QuickMike spindle advances 10 mm per thimble rotation, allowing the complete 30 mm measuring span to be covered in approximately three rotations. The ratchet friction thimble provides a controlled measuring force of 5–12 N for consistent contact with the workpiece.
The micrometer uses a 0.001 mm resolution and provides ±2 µm instrumental accuracy. Its carbide-tipped measuring faces have a micro-lap finish, while the 6.35 mm diameter non-rotating spindle is designed for stable outside-dimension measurement.
The Digimatic ABSOLUTE linear scale retains the established origin after power-off, reducing the need for repeated zero-setting. The LCD uses 10 mm-high characters for easy reading, while inch/metric functionality is not applicable to this metric-only model.
For inspection environments where coolant and workshop dust are present, the -20 generation provides IP65 protection. MIN Hold can retain the minimum measured value, while the Digimatic SPC output allows measurement data to be transferred to compatible inspection or data-collection systems.
A 25 mm standard bar is supplied for origin setting, together with an SR44 battery and fitted plastic case.
KEY BENEFITS
-
Measures a broad 25–55 mm range with one micrometer, including the 50 mm crossover.
-
Provides 0.001 mm resolution and ±2 µm instrumental accuracy.
-
10 mm spindle feed per thimble rotation enables rapid movement across the measuring range.
-
ABSOLUTE linear scale retains the origin through power-off.
-
Carbide-tipped, micro-lap measuring faces support repeatable outside-dimension inspection.
-
Non-rotating 6.35 mm spindle helps maintain stable contact with measured parts.
-
Ratchet friction thimble provides a controlled 5–12 N measuring force.
-
IP65 protection helps protect the instrument against workshop dust and coolant exposure.
-
MIN Hold supports inspection where minimum readings need to be retained.
-
Digimatic SPC output supports electronic measurement-data collection.
-
Supplied with a 25 mm standard bar, SR44 battery and fitted plastic case.
WHO THIS PRODUCT IS BEST FOR
The Mitutoyo 293-667-20 is suited to machine shops, automotive workshops, pump and compressor service, oil and gas machining, maintenance teams and quality-control departments that regularly inspect mid-size metric components.
Typical applications include measuring bearing journals, motor shafts, gear hubs, valve stems, spacer rings, turned pins, sleeves and other precision-machined components within the 25–55 mm range.
Its extended range can be useful where components vary around the 50 mm size, reducing the need to switch between adjacent micrometer ranges during inspection.
HOW TO USE / HOW IT WORKS
-
Set the origin: Place the supplied 25 mm standard bar between the measuring faces and use the ratchet to establish the reference position.
-
Open the micrometer: Use the QuickMike's rapid spindle movement to open the measuring faces beyond the size of the workpiece.
-
Position the part: Place the micrometer squarely over the outside diameter or measured surface.
-
Apply measuring force: Close the spindle using the ratchet friction thimble until the appropriate measuring contact is achieved.
-
Read the measurement: Read the 0.001 mm-resolution value on the LCD and use MIN Hold when required.
-
Transfer inspection data: When connected to a compatible system, use the Digimatic SPC output to transfer measurement data for inspection records.
FREQUENTLY ASKED QUESTIONS
What is the measuring range of the Mitutoyo 293-667-20?
The micrometer measures from 25 to 55 mm with 0.001 mm resolution and ±2 µm instrumental accuracy.
Why does the 293-667-20 have a 25–55 mm range?
The extended 30 mm range covers the 50 mm crossover, allowing one micrometer to measure parts above and below this common size boundary.
What spindle feed does this QuickMike use?
The spindle advances 10 mm per thimble rotation, allowing the full 25–55 mm range to be covered in approximately three rotations.
Is a standard bar included?
Yes. A 25 mm standard bar is supplied for origin setting, along with an SR44 battery and fitted plastic case.
Does the micrometer retain its zero after power-off?
Yes. The ABSOLUTE linear scale retains the established origin after power-off, reducing the need for repeated origin setting.
Is the Mitutoyo 293-667-20 suitable for coolant environments?
The -20 generation has an IP65 rating, providing protection against workshop dust and coolant exposure when used as intended.
Does it provide SPC data output?
Yes. The micrometer provides Digimatic SPC output for transferring measurement data to compatible inspection and data-collection equipment.
Which QuickMike should I choose for a different range?
The 293-666-20 covers smaller metric measurements, while the 293-668-20 covers 50–80 mm. The 293-677-20 is an inch/metric-range QuickMike covering 1–2.2 inches.
Is the 293-667-20 the same as the 293-667-22?
The 293-667-22 is listed as a newer version by Mitutoyo America. If the exact generation matters for your application, confirm the available part number with General Tech before ordering.
Where can I buy the Mitutoyo 293-667-20 in Saudi Arabia?
Contact General Tech Shop at +966 569 289 544 or mathews@generaltechsaudi.com for availability and pricing in Saudi Arabia.
