Mitutoyo 2910AB-10 | Dial Gauge | Flat Back | ANSI/AGD Type | Series 2 | One Revolution | Jewelled Bearing | Graduation 0.0001 inch | Range 0.008 inch

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 2910AB-10

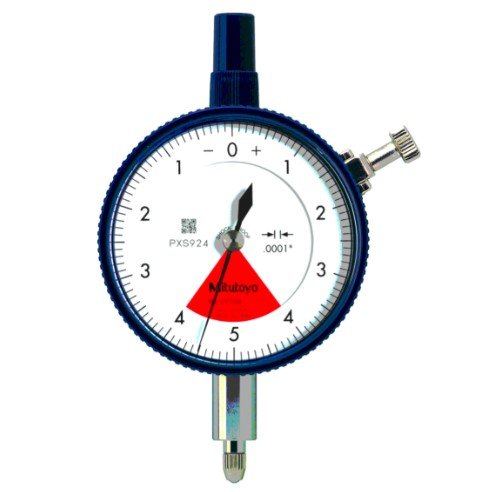

The Mitutoyo 2910AB-10 is a high-precision Series 2 dial indicator featuring a flat back design for secure mounting. It offers a measuring range of 0.008 inches with 0.0001 inch graduations, ensuring accurate readings. The one-revolution dial simplifies measurements by displaying the full scale in a single rotation. Designed to meet ANSI/AGD standards, it ensures compatibility with global equipment. The jewelled bearing system provides smooth, low-friction movement for enhanced sensitivity and long service life. This model is ideal for applications requiring precise linear measurements and reliable performance.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Carbide tipped
Dial Reading	4.0-0.0-4.0
Graduation	0.0001 Inch
Hysteresis	0.0001 Inch
Inch-Metric	Inch
Measuring Force	0.4 - 1.8 N
Range	0.008 Inch
Repeatability	+/-0.00003 Inch
Series	2
Stem Dia	9.52 mm Or 0.375 Inch
Stroke	Plunger: 2.2 mm
Thread type	4.0-48.0UNF
Type	ANSI/AGD Standard
Type	Dial Gauge
Weight	138 g

Ultra-Precise Measurement: Offers 0.0001 inch graduations for extremely accurate readings over a 0.008 inch range.
One-Revolution Dial: The full scale is covered in a single revolution, making it easy to read and reducing potential errors.
Flat Back Design: Provides stable and secure mounting for consistent measurements across various setups.
ANSI/AGD Compliance: Meets ANSI/AGD standards, ensuring compatibility with global equipment and industrial use.
Jewelled Bearing System: Ensures smooth, low-friction movement, enhancing sensitivity and providing long-lasting performance.
Durable Construction: Built for reliability and designed for high-performance measurement in tough environments.

DOWNLOAD CATALOG
