Mitutoyo 2902A-01 | Dial Gauge | Lug Back | ANSI/AGD Type | Graduation 0.01 mm | Range 10 mm
Part No. 2902A-01 | Range 10 mm | Graduation 0.01 mm | Lug Back
Product Overview

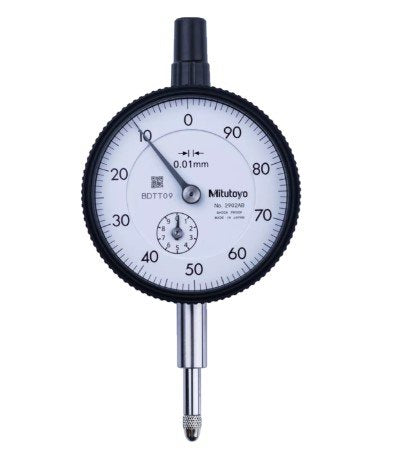

The Mitutoyo 2902A-01 is an ANSI/AGD-type plunger dial gauge designed for long-travel measurement of heights, steps, runout and machine alignment. With a 10 mm measuring range and 0.01 mm graduation, it provides practical resolution for dimensional inspection and setup applications.
Built to American Gage Design dimensions, the gauge is compatible with commonly used inspection stands, holders and fixtures. Its lug back provides a dedicated rear mounting point for secure attachment to brackets or fixtures where direct lug mounting is preferred. The mechanical movement is suited to regular measurement and inspection work in machine shops, toolrooms and maintenance environments.
For applications requiring a flat-back configuration, see the Mitutoyo 2902AB-01.
Key Benefits
-
0.01 mm graduation for clear and practical dimensional readings
-
10 mm measuring range for long-travel inspection
-
ANSI/AGD-type design for compatibility with common inspection equipment
-
Lug back for direct mounting to brackets, fixtures and suitable holders
-
Plunger-type construction for measuring heights, steps, runout and alignment
-
Mechanical movement suited to routine workshop inspection
-
Genuine Mitutoyo 2902A-01 supplied by General Tech Services LLC in Saudi Arabia
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a longer measuring stroke
-
Toolrooms and machine shops performing workpiece and fixture setup
-
Maintenance teams replacing an existing ANSI/AGD-type lug-back dial gauge
-
Quality-control teams performing dimensional and alignment checks
-
Buyers standardizing inspection equipment around Mitutoyo dial gauges
How to Use It
-
Mount the gauge using its lug back or suitable stem arrangement on a rigid bracket, stand or fixture.
-
Position the plunger squarely against the surface or feature being measured.
-
Pre-load the plunger slightly and rotate the bezel to establish the zero reference.
-
Move the workpiece or gauge across the feature and observe the pointer movement to determine the deviation.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2902A-01 dial gauge used for?
The Mitutoyo 2902A-01 is designed for long-travel measurement applications including heights, steps, runout and machine alignment. It provides a 0.01 mm graduation across a 10 mm measuring range.
What are the graduation and measuring range of the 2902A-01?
The Mitutoyo 2902A-01 has a 0.01 mm graduation and a 10 mm measuring range.
What does ANSI/AGD mean on the Mitutoyo 2902A-01?
ANSI/AGD refers to the American Gage Design standard used for dial indicators. The design provides standardized dimensions for compatibility with suitable stands, holders and mounting equipment.
What is the benefit of the lug back design?
The lug back provides a dedicated rear mounting point, allowing the gauge to be secured directly to compatible brackets, fixtures or stands.
What is the difference between the Mitutoyo 2902A-01 and 2902AB-01?
Both models have a 0.01 mm graduation and 10 mm measuring range. The 2902A-01 has a lug-back design, while the 2902AB-01 has a flat-back configuration for applications requiring that mounting arrangement.
Is the genuine Mitutoyo 2902A-01 available in Saudi Arabia?
General Tech Services LLC supplies genuine Mitutoyo products in Saudi Arabia. Call +966 569 289 544 for current pricing, lead time and stock availability.
Request Pricing and Availability
For genuine Mitutoyo 2902A-01 dial gauges in Saudi Arabia, contact General Tech Services LLC for pricing and current availability.
Call +966 569 289 544 to request a quote and confirm stock or lead time.
