Mitutoyo 227-216-20 ABSOLUTE Digital Adjustable Measuring Force Micrometer, .4′′ – .8′′ (10.16 - 20.32 mm)
Mitutoyo 227-216-20 ABSOLUTE Micrometer with Adjustable Measuring Force, 0.4–0.8" (10.16–20.32 mm), 2–10 N
Mitutoyo 227-216-20 Adj. Force Micrometer .4-.8" | KSA
PRODUCT SUMMARY
The Mitutoyo 227-216-20 adjustable measuring force micrometer measures 0.4–0.8" (10.16–20.32 mm) with 0.00005" (0.001 mm) resolution and ±0.0001" instrumental accuracy. Five measuring-force settings from 2 to 10 N help provide controlled contact when measuring plastic bushings, rubber seals, thin-walled aluminium sleeves and other parts that can deform under pressure. A standard bar is supplied for origin setting, while the ABSOLUTE scale and Digimatic SPC output support repeatable inspection. Contact General Tech at +966 569 289 544 for a quote.
PRODUCT DESCRIPTION
The Mitutoyo 227-216-20 is a digital outside micrometer designed for measuring 0.4–0.8" (10.16–20.32 mm) components where controlled measuring force is important.
Soft plastics, rubber-covered components and thin-walled metal parts can change dimension when excessive pressure is applied. The adjustable measuring-force mechanism allows the operator to select a defined contact load before taking the measurement.
Five measuring-force settings are available: 2, 4, 6, 8 and 10 N. Once the selected force is reached, the built-in constant-force mechanism stops and holds the measurement contact. Using the same force setting across operators can help maintain consistent inspection conditions.
The micrometer provides 0.00005" (0.001 mm) resolution and ±0.0001" instrumental accuracy. Its carbide-tipped measuring faces have a micro-lapped finish, with 0.3 µm flatness and 2 µm parallelism. The Ø6.35 mm spindle is non-rotating, helping maintain stable alignment against round and flat workpieces.
The spindle advances 0.4" (10 mm) per revolution for rapid movement across the measuring range. A supplied standard bar is used to establish the origin at the lower end of the range. The ABSOLUTE linear scale retains the established origin after power-off, reducing the need for repeated re-zeroing.
The LCD supports inch/mm conversion, while functions include Zero/ABS, Origin, Hold/Data and ON/OFF. Low-voltage and counting-error alarms provide additional operating feedback, and automatic power-off can occur after approximately 20 minutes.
Digimatic SPC output allows measurements to be transferred to compatible inspection and data-collection systems using suitable SPC cables. The instrument uses one SR44 battery and is supplied with a fitted plastic case.

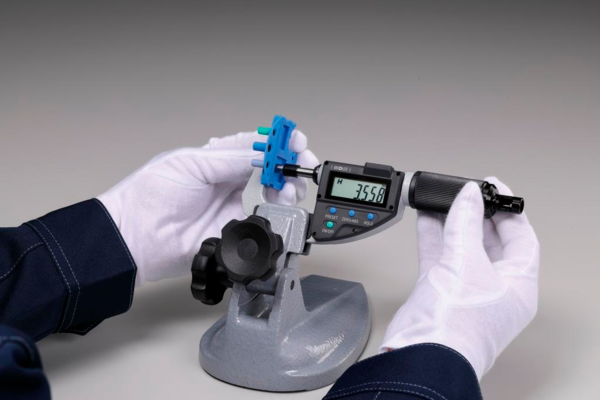

For smaller components below 0.4", the Mitutoyo 227-215-20 can be considered. For larger parts from 0.8–1.2", the 227-217-20 provides a higher measuring range with the same adjustable 2–10 N force concept. For very soft applications requiring lower contact force, the 227-211-20 provides a lower force range.
KEY BENEFITS
-
Measures 0.4–0.8" (10.16–20.32 mm) with adjustable measuring force.
-
Five selectable force settings: 2, 4, 6, 8 and 10 N.
-
Helps control contact pressure on plastics, rubber, thin-walled parts and soft alloys.
-
Provides 0.00005" (0.001 mm) resolution and ±0.0001" instrumental accuracy.
-
Carbide-tipped, micro-lapped measuring faces support precision inspection.
-
Non-rotating Ø6.35 mm spindle helps maintain stable contact with the workpiece.
-
10 mm spindle feed per revolution provides fast movement across the range.
-
ABSOLUTE linear scale retains the origin after power-off.
-
Supplied standard bar supports origin setting.
-
Inch/mm conversion supports different measurement requirements.
-
Hold/Data function supports measurement recording during inspection.
-
Digimatic SPC output enables electronic measurement-data transfer.
-
SR44 battery and fitted plastic case are supplied.
Contact General Tech at +966 569 289 544 for Mitutoyo 227-216-20 pricing and availability in Saudi Arabia.
WHO THIS PRODUCT IS BEST FOR
The Mitutoyo 227-216-20 is suited to automotive component manufacturers, plastics and rubber manufacturers, machine shops, oil and gas workshops, maintenance teams and quality-control laboratories that inspect 10–20 mm components where measuring force can affect the result.
Typical applications include:
-
Nylon and PTFE bushings
-
Rubber seals and grommets
-
Thin-walled aluminium sleeves
-
Moulded plastic pins
-
Soft-metal fittings
-
Coated or finished components
-
Small shafts and cylindrical parts
-
Components that can deform under excessive measuring pressure
The adjustable force mechanism can be particularly useful when several operators inspect the same component and a consistent measuring condition is required.
HOW TO USE / HOW IT WORKS
-
Clean the measuring faces: Remove chips, dirt and residue from the carbide faces and the workpiece.
-
Set the origin: Place the supplied standard bar between the measuring faces and establish the reference position at 0.4".
-
Select the measuring force: Choose 2, 4, 6, 8 or 10 N according to the material and inspection requirement.
-
Position the workpiece: Place the micrometer squarely around the measured feature.
-
Apply the selected force: Turn the thimble until the constant-force mechanism reaches the selected setting and holds the contact.
-
Read the measurement: Check the LCD display and use inch or millimetre units as required.
-
Record or transfer the result: Use Hold/Data for inspection records or transfer the measurement through the Digimatic SPC output to compatible equipment.
-
Maintain consistency: For repeated measurements, use the same force setting and measurement position across operators and parts.
FREQUENTLY ASKED QUESTIONS
What is the measuring range of the Mitutoyo 227-216-20?
The micrometer measures 0.4–0.8" (10.16–20.32 mm).
What measuring-force settings are available?
The 227-216-20 provides five selectable settings: 2, 4, 6, 8 and 10 N.
Why is adjustable measuring force useful?
It allows the operator to control contact pressure when measuring parts that can deform or change dimension under excessive force, including plastics, rubber components and thin-walled metal parts.
What is the resolution?
The resolution is 0.00005" (0.001 mm).
What is the stated accuracy?
The stated instrumental accuracy is ±0.0001".
Is a standard bar supplied?
Yes. A standard bar is included for origin setting.
Does the spindle rotate during measurement?
No. The Ø6.35 mm spindle is non-rotating, helping maintain stable contact with the measured surface.
Does the ABSOLUTE scale retain the origin?
Yes. The ABSOLUTE linear scale retains the established origin after power-off.
What battery does the micrometer use?
It uses one SR44 battery. Mitutoyo's stated battery life is approximately one year; actual life can vary depending on usage and operating conditions.
Does it provide SPC output?
Yes. Digimatic SPC output is available for transferring measurements to compatible inspection and data-collection equipment.
Which model should I choose?
Choose the 227-216-20 for 0.4–0.8" parts requiring adjustable 2–10 N measuring force. The 227-215-20 covers smaller parts below 0.4", while the 227-217-20 covers 0.8–1.2". The 227-211-20 is designed for very soft applications requiring lower measuring force.
What is the 227-216-22?
Mitutoyo America lists the 227-216-22 as a newer US listing. Confirm the exact version and availability with General Tech before ordering.
