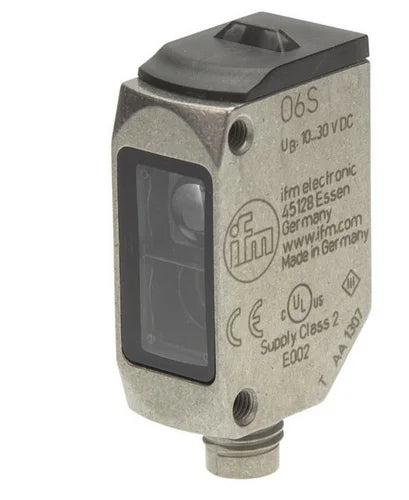

Through-beam sensor–transmitter ifm electronic O6S302 - O6S-OOKG/AS/3P
The transmitter of the compact through-beam sensor O6S302 - O6S-OOKG/AS/3P from ifm is characterised by the robust stainless steel housing with the protection rating IP65/IP67/IP68/IP69K. The O6 through-beam sensor is easily set via the potentiometer on the receiver. The double seal of the potentiometer and the flush front lens made of shatterproof plastic allow cleaning without residue. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The transmitter of the through-beam sensor O6S302 - O6S-OOKG/AS/3P with 3-pole M8 connector in conjunction with the matching receiver is the perfect solution for use in the food industry.
- Specifications
- Features
- Downloads
| Ambient temperature | -25 °C to 80 °C |
| Current consumption [mA] | 11; ((24 V)) |
| Electrical design | PNP |
| Housing | rectangular |
| Operating voltage [V] | 10-30 DC V |
| Protection class | III |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Very long range independent of the object color
