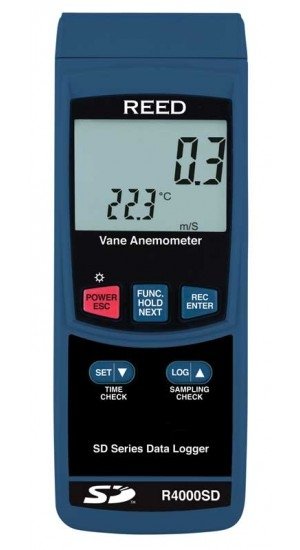

REED R4000SD | Data Logging Vane Thermo-Anemometer | SD Card, Type J/K Input
The REED R4000SD measures air velocity in fpm, m/s, kph, mph and knots plus temperature, using a vane probe with low friction ball bearings. A built-in contact thermometer accepts Type J/K thermocouples, a thermistor gives quick air temperature, and readings log to SD card.
- Vane probe with low friction ball bearings
- Type J/K contact thermometer input
- Automatic temperature compensation
- SD card logging (max 16 GB), 1 to 3600 s
- Data hold, Max/Min, backlit dual LCD
- Optional tripod and AC adaptor
- Specifications
- Features
- Downloads
| Part Number | R4000SD |
| Brand | REED |
| Display | 5-digit, Dual LCD Display |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Weight | 1.13lb (515g) |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Auto shut-off | Yes (after 10 minutes/off) |
| Dimensions | 8 x 3 x 1.5" (203 x 76 x 38 mm) |
| Product Certifications | CE |
| Sampling Rate | 1 to 3600 seconds |
| Probe | Rotating vane, ball bearings |
| Units | fpm, m/s, kph, mph, knots |
| Thermocouple Input | Type J/K |
| Data Logging | SD card (max 16 GB); up to 99 manual readings |
Air velocity (fpm, m/s, kph, mph, and knots) and temperature are measured.
Type J/K thermocouple choice for contact temperature measuring
For quick air temperature readings, use a thermistor sensor.
A revolving vane probe with low friction ball bearings ensures high accuracy readings.
Real-time data logger with SD memory card integration
The sample rate can be set anywhere between 1 and 3600 seconds by the user.
LCD display with backlight that is easy to read
Holding data and using the Min/Max functions
For long-term monitoring, use a tripod mount on the probe and equipment.
Auto-shutoff and low-battery indicator
