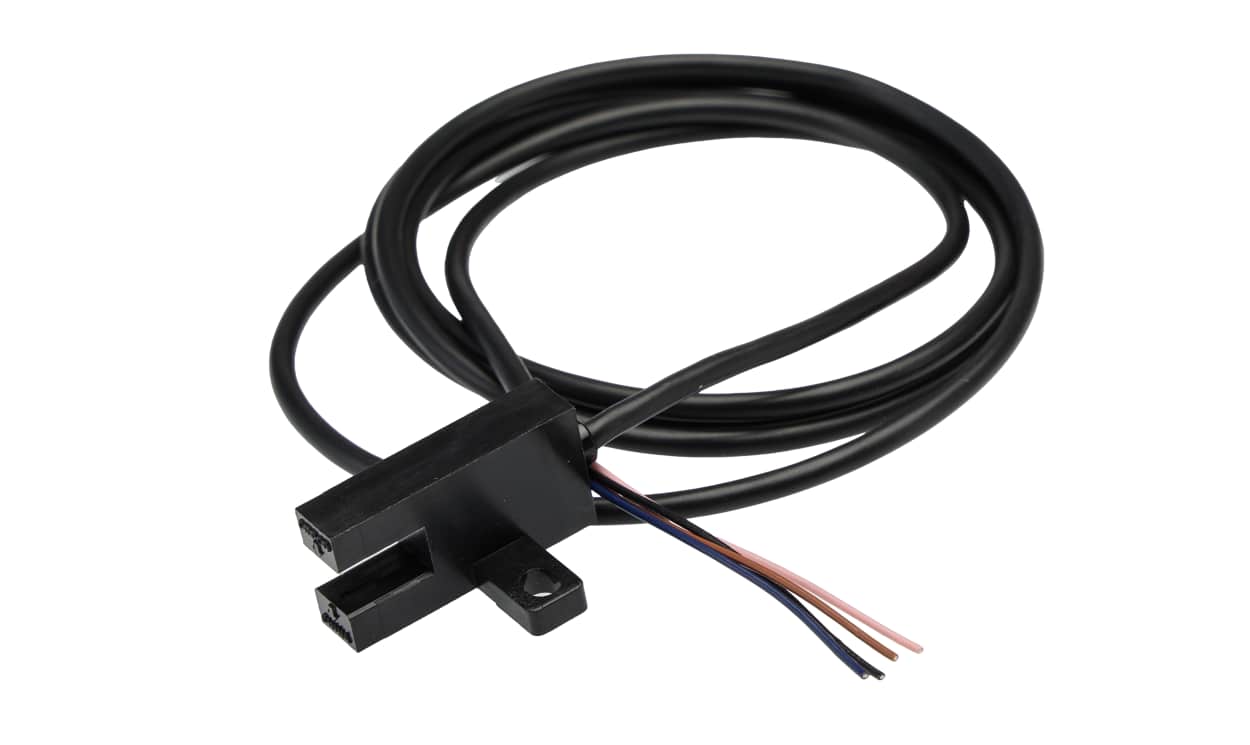

OMRON EE-SX672P-WR 1M | Through-Beam Slot Sensor | 5 mm, PNP, Pre-Wired Cable
OMRON's EE-SX672P-WR 1M through-beam slot sensor offers a sensing distance of 5 mm and a PNP output. The unit is wired via a pre-wired cable.
- Supply voltage up to 24 V DC
- Response time 0.17 ms
- Operating temperature -25 °C to +55 °C
- Housing: PBT
- Switching: light-on / dark-on switching
- Standards: IEC 60529
- Detailed Description
- Specifications
- Downloads
Omron EE-SX67 Series Photoelectric Sensor, 5mm Detection Range, PNP Output Type - EE-SX672P-WR 1M
Features & Benefits
• Operates on a maximum DC voltage of 24V for versatility
• PBT housing material provides durability under various conditions
• Capable of light/dark switching to suit diverse operational needs
• Complies with IEC 60529 standards for water and dust resistance
• Supports a wide temperature range from -25°C to +55°C
Applications
• Ideal for measuring liquid levels in industrial tanks
• Employed in safety systems for machine operation monitoring
• Used for product counting on conveyor belts and sorting systems
• Suitable for packaging where accurate detection is critical
What is the typical application environment for this sensor?
How does the light/dark switching capability enhance its performance?
What type of connection does this sensor support?
Can this sensor be used in safety applications?
| Brand | Omron |
| Series | EE-SX67 |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Slot |
| Output Type | PNP |
| Electrical Connection | Pre-Wired Cable |
| Switching Mode | Light / Dark switching |
| Response Time | 0.17 ms |
| Maximum DC Voltage | 24V |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Standards Met | IEC 60529 |
