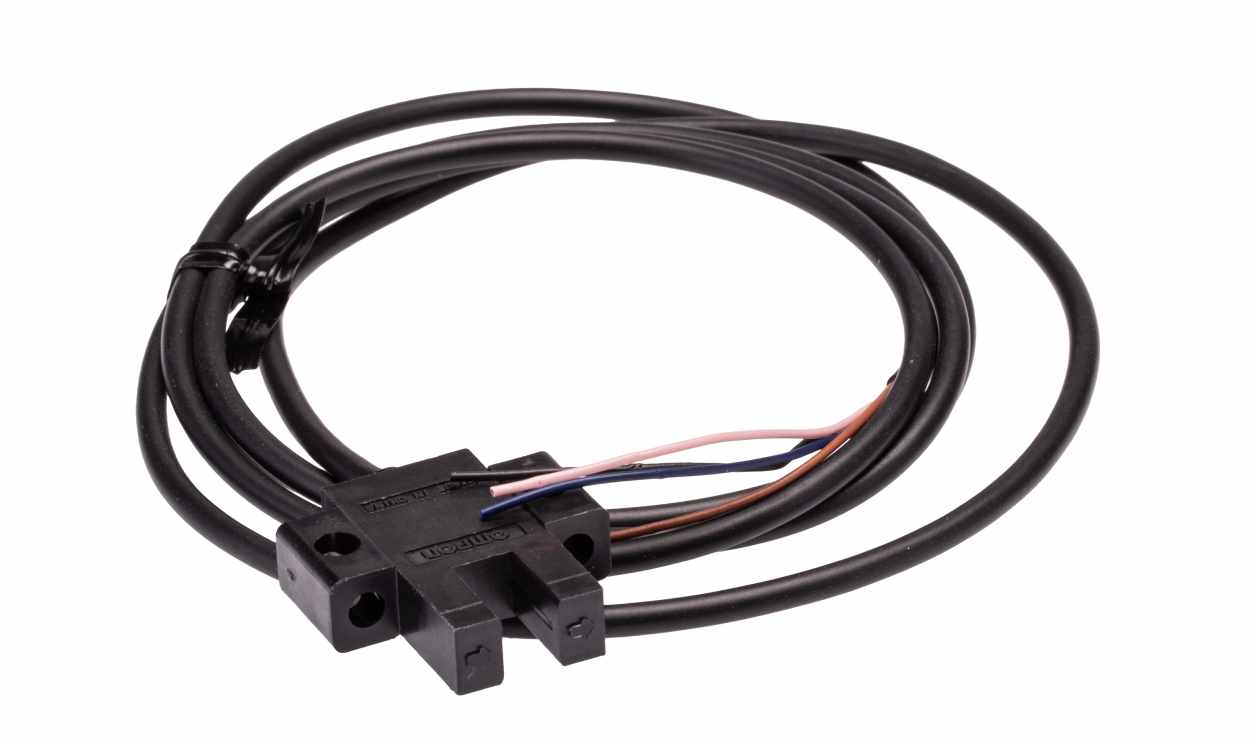

OMRON EE-SX670-WR 1M | Through-Beam Slot Sensor | 5 mm, NPN, IP50
With a 5 mm detection range, the OMRON EE-SX670-WR 1M is a through-beam slot sensor that provides an NPN output. This sensor uses a pre-wired connection, is fitted with an infrared light source and is rated IP50.
- Maximum voltage 24 V DC
- Current up to 35 mA
- 0.17 ms response time
- Works from -25 °C to +55 °C
- PBT housing
- Light-on / dark-on switching
- Detailed Description
- Specifications
- Downloads
Omron Series EE Photoelectric Sensor, 5mm Detection Range, IP50 - EE-SX670-WR 1M
Features & Benefits
• Infrared light source enhances detection versatility and accuracy
• IP50 rating offers protection against dust ingress for durability in challenging environments
Applications
• Employed in packaging machines for material handling
• Utilised in automated assembly lines for quality control
• Suitable for robotics that require precise positioning
What operating temperature range can be tolerated?
How can I ensure correct installation?
Is compatibility with existing systems guaranteed?
What are the implications of the IP rating?
| Brand | Omron |
| Series | EE |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Slot |
| Output Type | NPN |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Response Time | 0.17 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 35 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Pre-Wired |
