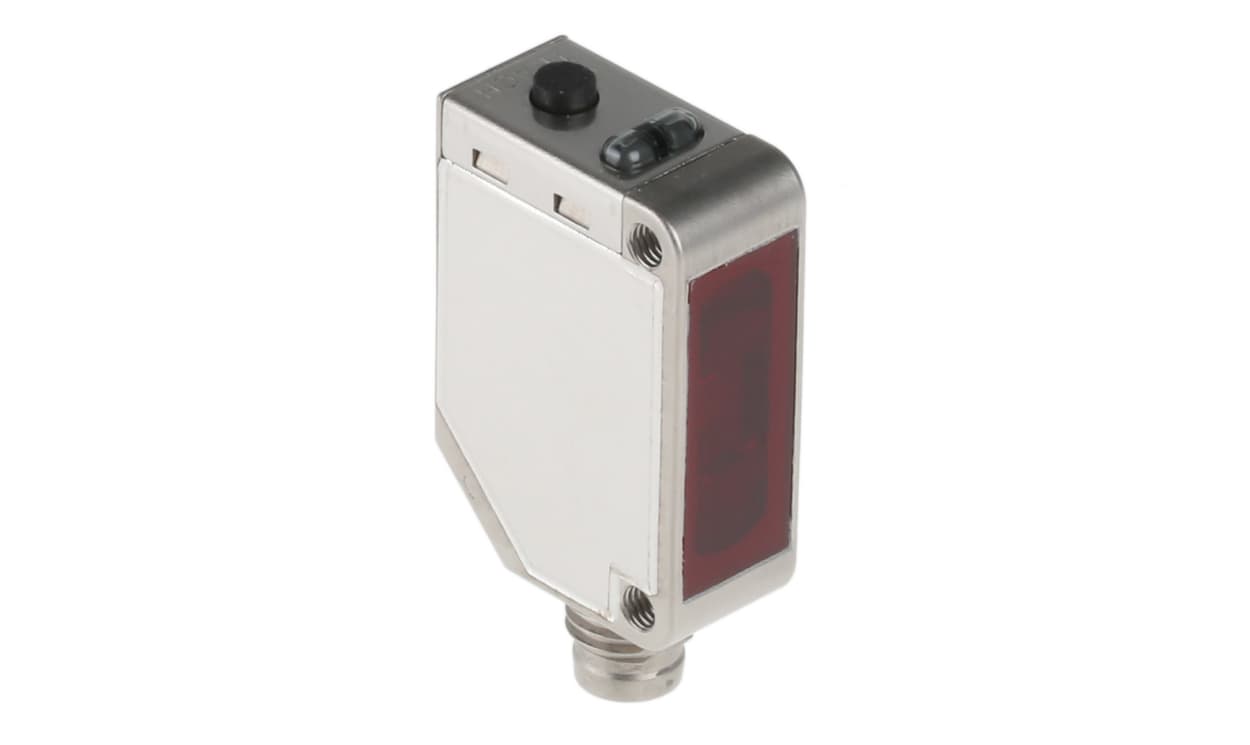

Name: Omron E3ZMB86, Retroreflective Photoelectric Sensor, Block Sensor, 500 mm Detection Range
Brand: OMRON
SKU: E3ZMB86
Availability: OutOfStock

Omron E3ZMB86, Retroreflective Photoelectric Sensor, Block Sensor, 500 mm Detection Range

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3ZMB86, Retroreflective Photoelectric Sensor, Block Sensor, 500 mm Detection Range

Part Number : E3ZMB86

Availability: Sold out

Detailed Description
Specifications

Omron E3ZM Series Photoelectric Sensor, 500mm Detection Range, IP67/IP69K - E3ZMB86

This photoelectric sensor is designed for precise detection of transparent objects, making it suitable for industrial applications. Its unique detection technology ensures dependable operation, regardless of the object's shape, position, or contents, which is essential in automation and packaging environments.

Features & Benefits

• IP67 and IP69K rated for dust resistance and high-pressure washdowns
• Made from stainless steel for durability and chemical resistance
• Temperature range of -40°C to +60°C, accommodating varied conditions

Applications

• Detects PET bottles in bottling facilities
• Suitable for high hygiene standards in food processing
• Utilised in automated packaging systems for quality assurance
• Ideal for handling glass or resin bottles with stable detection

How does it adjust for lens contamination?

The sensor includes an AC3 function that regularly checks and modulates the light intensity to mitigate the effects of contamination and temperature fluctuations, ensuring consistent performance.

What should be considered for installation to maintain its IP67/IP69K rating?

Ensure secure power supply and connections, and avoid directing high-pressure water at one part of the sensor to preserve its protective integrity.

Is it compatible with conventional reflective surfaces?

It requires specific reflective surfaces from Omron for optimal detection

standard options might not provide effective results.

Brand	Omron
Sensor Style	Block
Detection Type	Retroreflective
Detection Range	500 mm
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Switching Mode	Light / Dark switching
Maximum DC Voltage	30V
Light Source	Red LED
IP Rating	IP67/IP69K
Maximum Current	100 mA
Response Time	1 ms
Series	E3ZM
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+60°C
Housing Material	Stainless Steel
