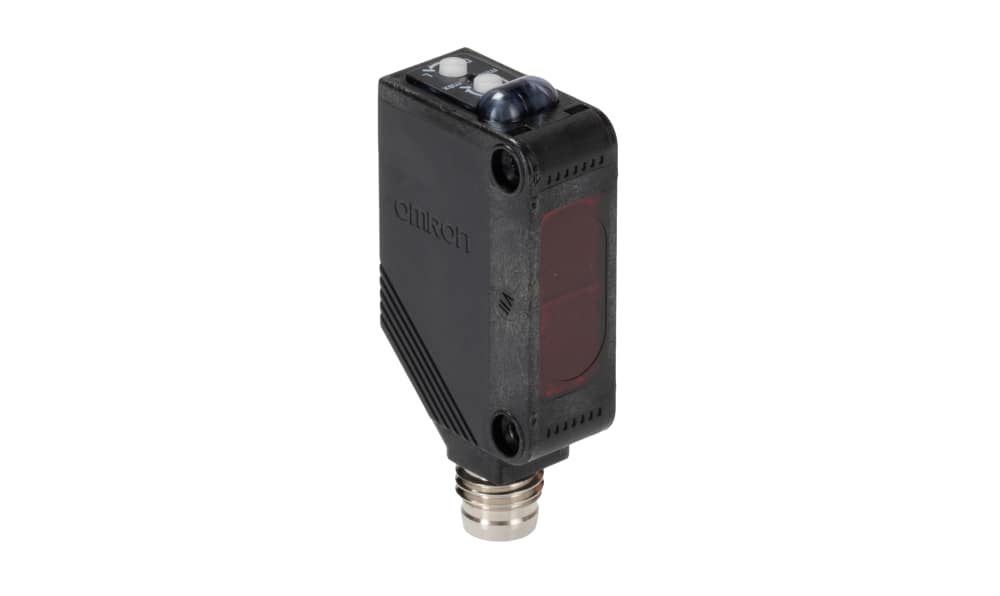

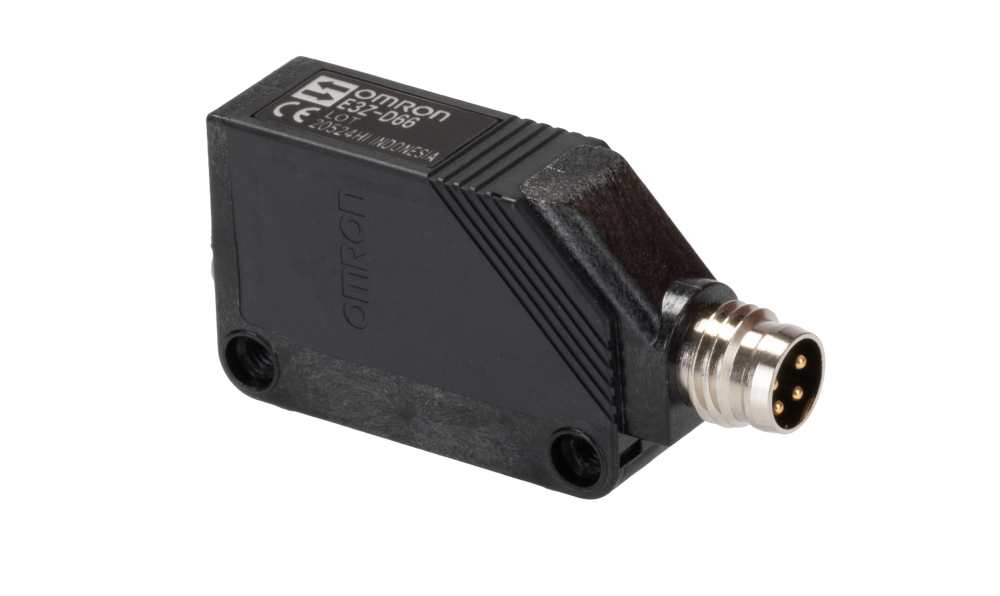

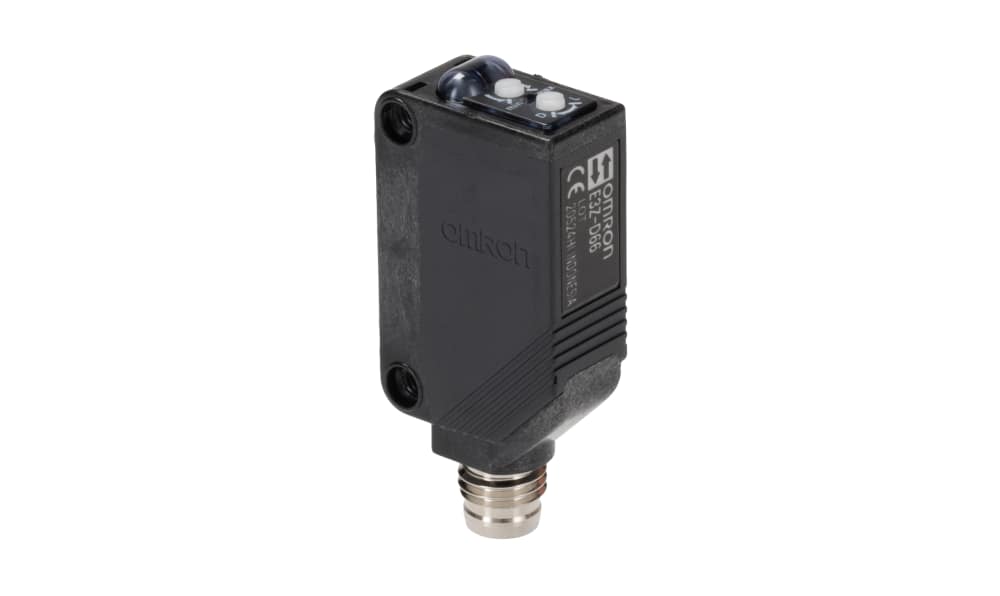

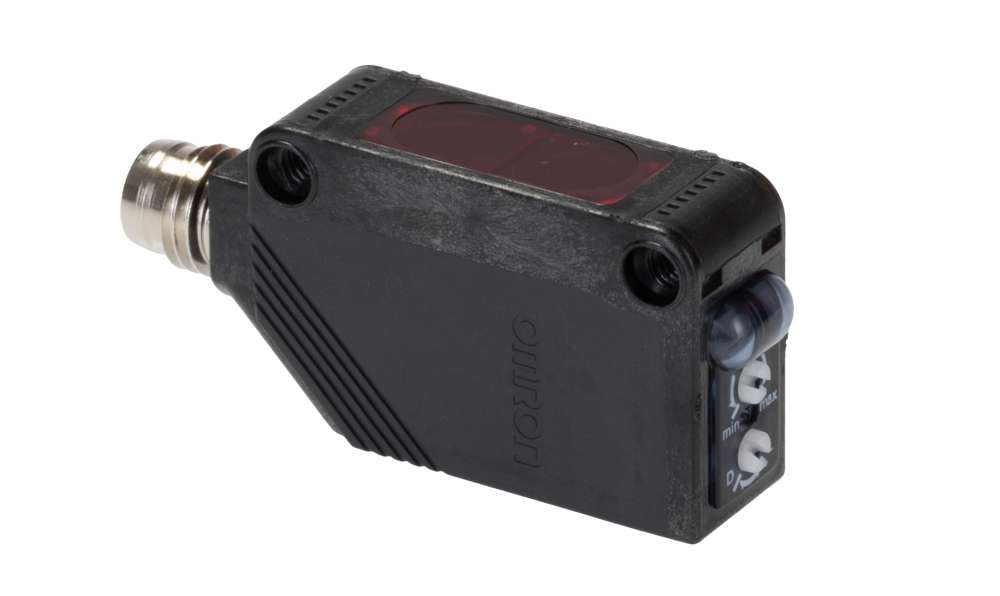

OMRON E3Z-D66 | Diffuse Photoelectric Sensor | 5 mm to 100 mm, NPN, M8 4-Pin Connector
OMRON E3Z-D66: NPN block-style diffuse photoelectric sensor with a 5 mm to 100 mm detection range. Connection is via M8 4-pin connector. Protection is IP67 and the PBT housing works between -25°C and +55°C. Light source: infrared; response time: 1 ms.
- Light/dark switching mode
- Maximum DC voltage: 24V
- Maximum current: 30 mA
- Thread size: M8
- Standards: CE
- Series: OMRON E3Z
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, 5mm to 100mm Detection Range, IP67 - E3Z-D66
Features & Benefits
• Utilises NPN output for efficient signal transmission
• IP67 rating offers protection against dust and moisture
• Supports light/dark switching for versatile Applications
• Quick response time of 1ms improves operational efficiency
• M8 4-pin connector simplifies wiring
Applications
• Accurate sensing in packaging machines
• Streamlining operations in material handling
• Precise positioning and navigation in robotics
What type of electrical connection is required?
How does the operating temperature affect functionality?
Can the sensor work with different output configurations?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Diffuse |
| Detection Range | 5 mm → 100 mm (0.197 to 3.94 in) |
| Sensor Style | Block |
| Output Type | NPN |
| Electrical Connection | M8 4 Pin Connector |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Response Time | 1 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67 |
| Maximum Current | 30 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | 4 Pin Connector |
| Standards Met | CE |
| Thread Size | M8 |
