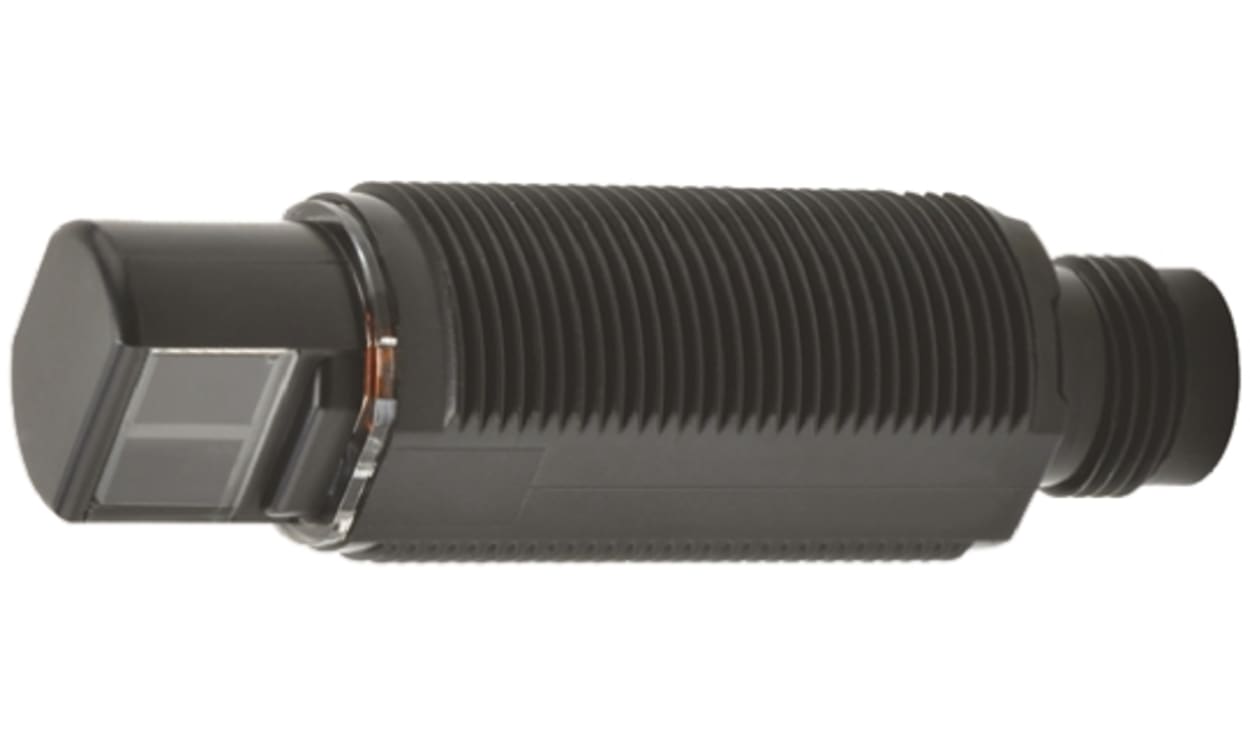

OMRON E3RA-TN21 | Through-Beam Photoelectric Sensor | 15 m, NPN, M12 4-Pin Connector
Rated for a 15 m detection range, OMRON's E3RA-TN21 is a barrel-style through-beam photoelectric sensor that provides NPN output. It connects via an M12 4-pin connector and it has an ABS housing. Series designation for the E3RA-TN21 is E3RA.
- LED light source
- Rated up to 30 V DC
- Maximum current: 40 mA
- 500 μs response time
- IP67 and IP69K ingress protection
- Works from -25°C to +55°C
- Detailed Description
- Specifications
- Downloads
E3RA Compact Radial Photoelectric Sensors
Compact design
Plastic housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3RA |
| Detection Type | Through Beam |
| Detection Range | 15 m (49.2 ft) |
| Sensor Style | Barrel |
| Output Type | NPN |
| Electrical Connection | M12 4 Pin Connector |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 40 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
