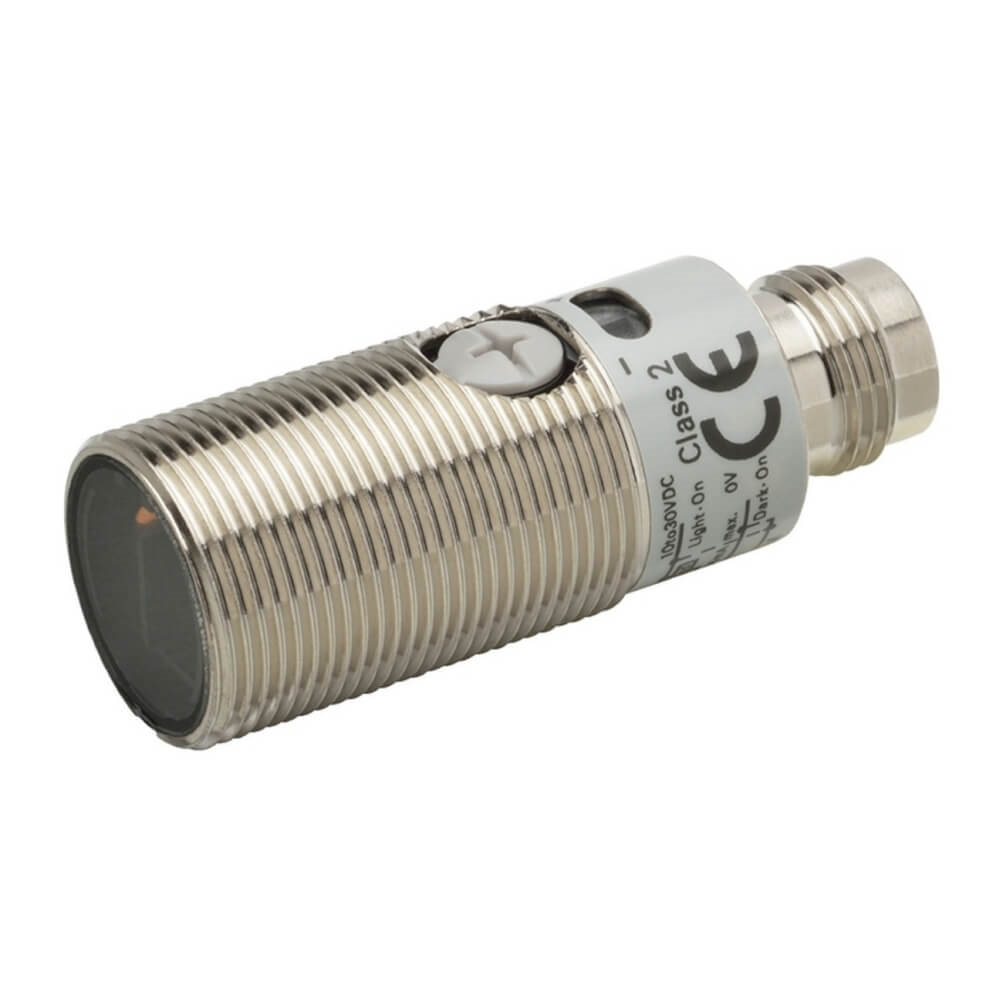

Omron E3FB-DP23, Diffuse Photoelectric Sensor, Barrel Sensor, 1 m Detection Range

Name: Omron E3FB-DP23, Diffuse Photoelectric Sensor, Barrel Sensor, 1 m Detection Range
Brand: OMRON
SKU: E3FB-DP23
Availability: OutOfStock

Part Number : E3FB-DP23

Photoelectric sensor, M18 axial, metal body, red LED, diffuse, 1m, PNP, L-ON/D-ON selectable, M12 connector

Availability: Sold out

Detailed Description
Specifications
Features

Omron E3F Series Photoelectric Sensor, 1m Detection Range, PNP Output - E3FBDP23

This photoelectric sensor is essential for automation and industrial applications, providing effective detection through its diffuse detection mechanism. Designed for versatility, it performs well in environments with limited space while ensuring reliable operation under various conditions. The robust housing and efficient communication make it a key element in modern sensing solutions.

Features & Benefits

• Barrel style design simplifies installation in tight spaces
• Diffuse detection range of up to 1m enhances application flexibility
• PNP output allows seamless integration into existing systems
• M12 4 pin connector ensures quick and secure connections
• LED light source provides energy-efficient operation
• IP67 and IP69K ratings ensure durability in challenging environments

Applications

• Utilised for object detection in packaging machinery
• Implemented in assembly lines for verifying product presence
• Applied in automation systems requiring precise sensing
• Used in conveyor systems to monitor the movement of goods
• Suitable for deployment in dusty or wet environments

Can this device be installed in harsh environments?

Yes, its IP67 and IP69K ratings make it suitable for such conditions.

What type of output is provided by this sensor?

It offers a PNP output, enabling easy integration into various systems.

How does the diffuse detection feature work?

It detects objects based on reflected light, ensuring accurate sensing at close range.

What is the maximum current rating for this sensor?

It can handle up to 25mA, ensuring consistent performance.

Is the sensor compatible with standard connectors?

Yes, it uses an M12 4 pin connector for universal compatibility.

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Diffuse
Detection Range	1 m
Output Type	PNP
Electrical Connection	M12 4 Pin Connector
Maximum DC Voltage	30V
Terminal Type	Wire
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	25 mA
Response Time	500 μs
Minimum Operating Temperature	-25°C
Series	E3F
Housing Material	Nickel Plated Brass
Mounting Type	Flange Mount
Maximum Operating Temperature	+55°C
Standards Met	CE
Thread Size	M12

Photoelectric sensor, M18 axial, metal body, red LED, diffuse, 1m, PNP, L-ON/D-ON selectable, M12 connector
