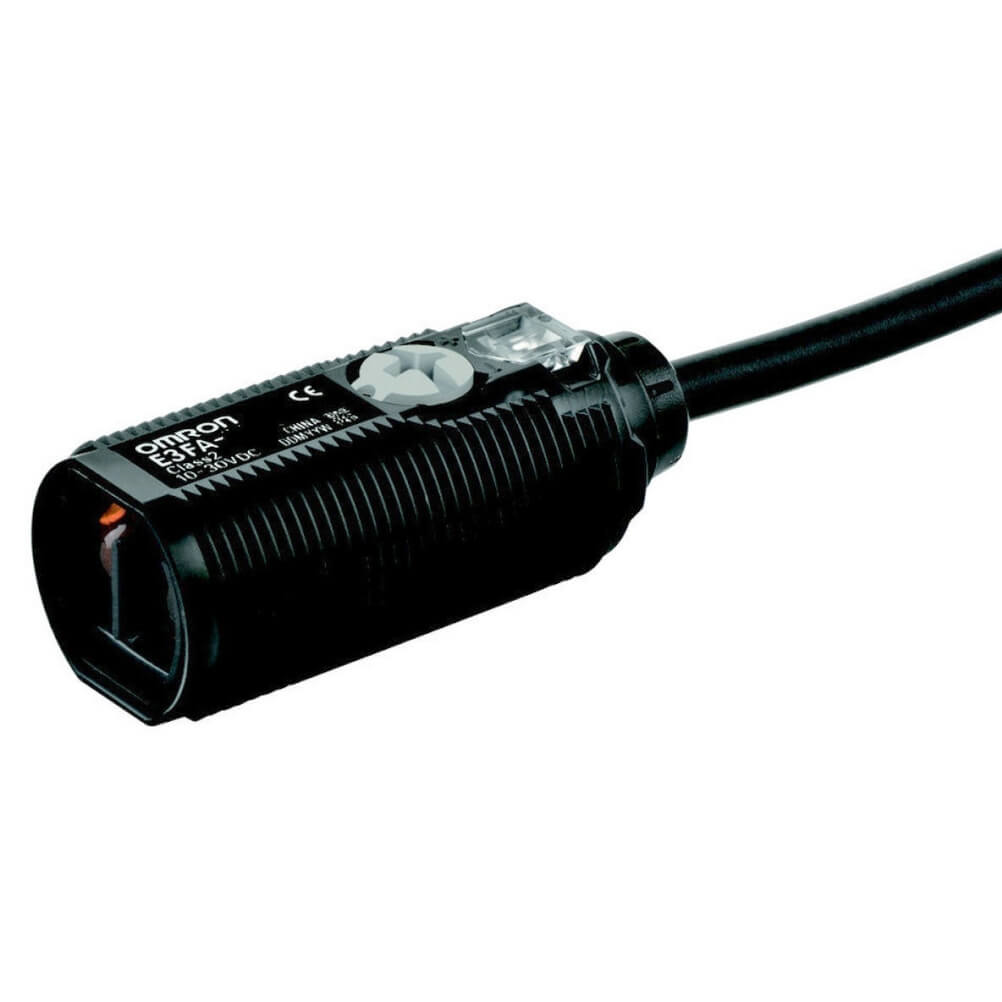

OMRON E3FA-RP11 2M | Retroreflective Photoelectric Sensor | M18, 100 mm to 4 m, PNP
OMRON E3FA-RP11 2M is a barrel retroreflective photoelectric sensor for a 100 mm to 4 m detection range, with a PNP output. Electrical connection is made with a 4-wire 2 m cable. The E3FA-RP11 2M has an M18 axial plastic body and a red LED with selectable light-ON/dark-ON operation. The E3FA-RP11 2M is rated IP67 and IP69K, operates from -25 to +55 °C and has an ABS housing. The E3FA-RP11 2M also lists a 500 μs response time, a 30V DC maximum voltage and 25 mA maximum current.
- Detection range: 100 mm to 4 m
- PNP output, light/dark switching
- Connection: 4-wire 2 m cable
- IP67 and IP69K protection
- Detailed Description
- Specifications
- Features
- Downloads
Omron E3F Photoelectric Sensor, Barrel Sensor, Retroreflective Detection Type - E3FARP112M
Features & Benefits
• When using the E39-R1S, the sensing distance ranges from 0.1 to 4 metres
• The sensor can be configured to operate in either Light ON or Dark ON mode based on your application requirements
• The sensor features a PNP open collector output with a maximum voltage of 30 VDC and a maximum current of 100 mA
• The operate or reset time is a swift 0.5 ms maximum
• It operates reliably in temperatures ranging from -25°C to 55°C (with no freezing or condensation)
Applications
• Ensuring proper packaging alignment and presence
• Verifying component placement and assembly
• Detecting objects in warehouses and logistics centres
What is the sensing distance of the E3FARP112M sensor?
Can I choose between Light ON and Dark ON operation?
Is the sensor suitable for harsh environments?
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3F |
| Detection Type | Retroreflective |
| Detection Range | 100 mm → 4 m |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | 4 Wire Cable 2 m |
| Switching Mode | Light / Dark switching |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 25 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Standards Met | CE |
| Thread Size | M18 |
Photoelectric sensor, M18 axial, plastic body, red LED, retro-reflective, 0.1-4m, PNP, L-ON/D-ON selectable, 2m cable
