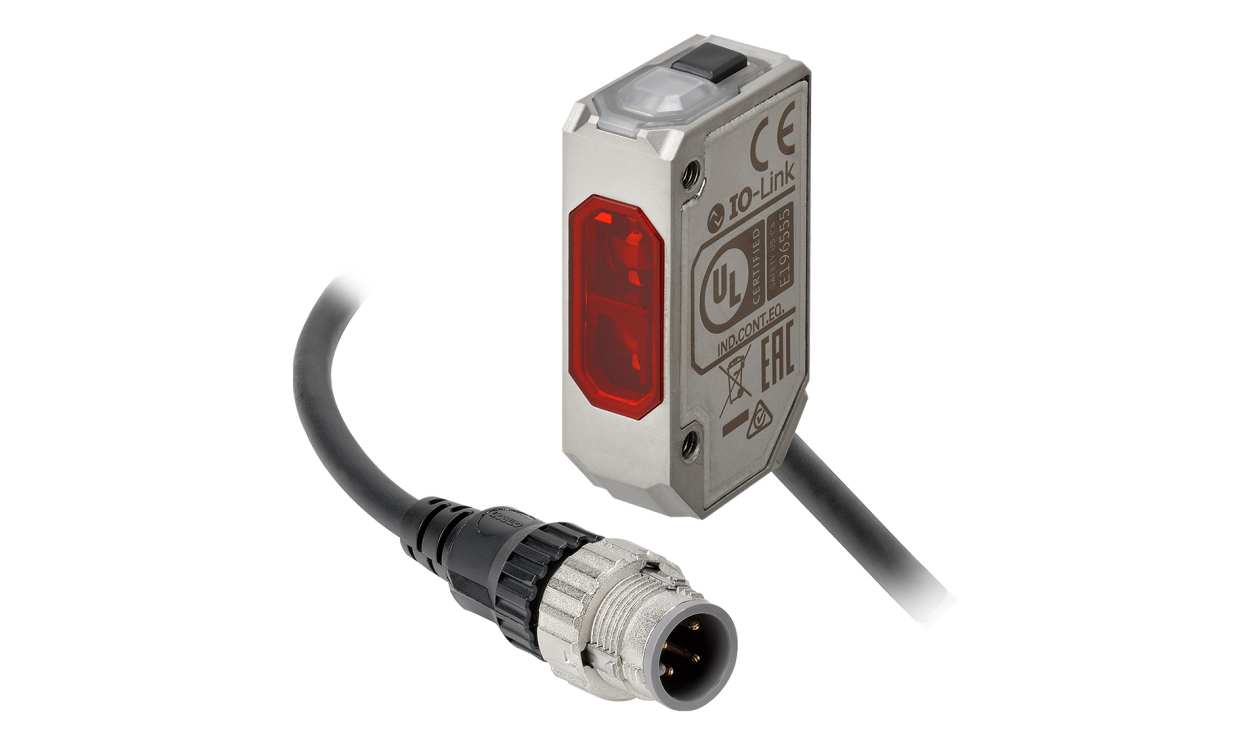

OMRON E3AS-L200MT-M1TJ 0.3M | Photoelectric Sensor | 200 mm, PNP, M12 Smartclick
Rated for a 200 mm detection range, OMRON E3AS-L200MT-M1TJ 0.3M is a photoelectric sensor with a PNP output. The 200 mm model connects through an M12 Smartclick pigtail. The 200 mm model operates from -10 to +50 °C and has a stainless steel housing. Listed electrical data include a 1 ms response time.
- Detection range: 200 mm
- PNP output, light/dark switching
- Connection: M12 Smartclick pigtail
- Operating temperature -10 to +50 °C
- Response time 1 ms
- Housing: Stainless Steel
- Detailed Description
- Specifications
- Downloads
Omron E3AS Series Photoelectric Sensor, OLED Display, Versatile Mount - E3AS-L200MT-M1TJ 0.3M
Features & Benefits
• PNP output for easy integration into existing systems
• Fast response time of 1ms for quick detection
• Antifouling coating prevents contamination on the surface
• IO-Link connectivity enables advanced communication capabilities
• Durable stainless steel housing ensures longevity in harsh conditions
Applications
• Ideal for automation processes requiring precise control
• Utilised in high-speed sorting systems
Is it suitable for use in wet environments?
| Brand | Omron |
| Series | E3AS |
| Detection Type | Infrared Laser |
| Detection Range | 200 mm (7.87 in) |
| Output Type | PNP |
| Electrical Connection | M12 Smartclick Pig-tail |
| Switching Mode | Light / Dark switching |
| Light Source | Polarity Free Red Light |
| Response Time | 1 ms |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | '+50 °C |
| Standards Met | CE |
