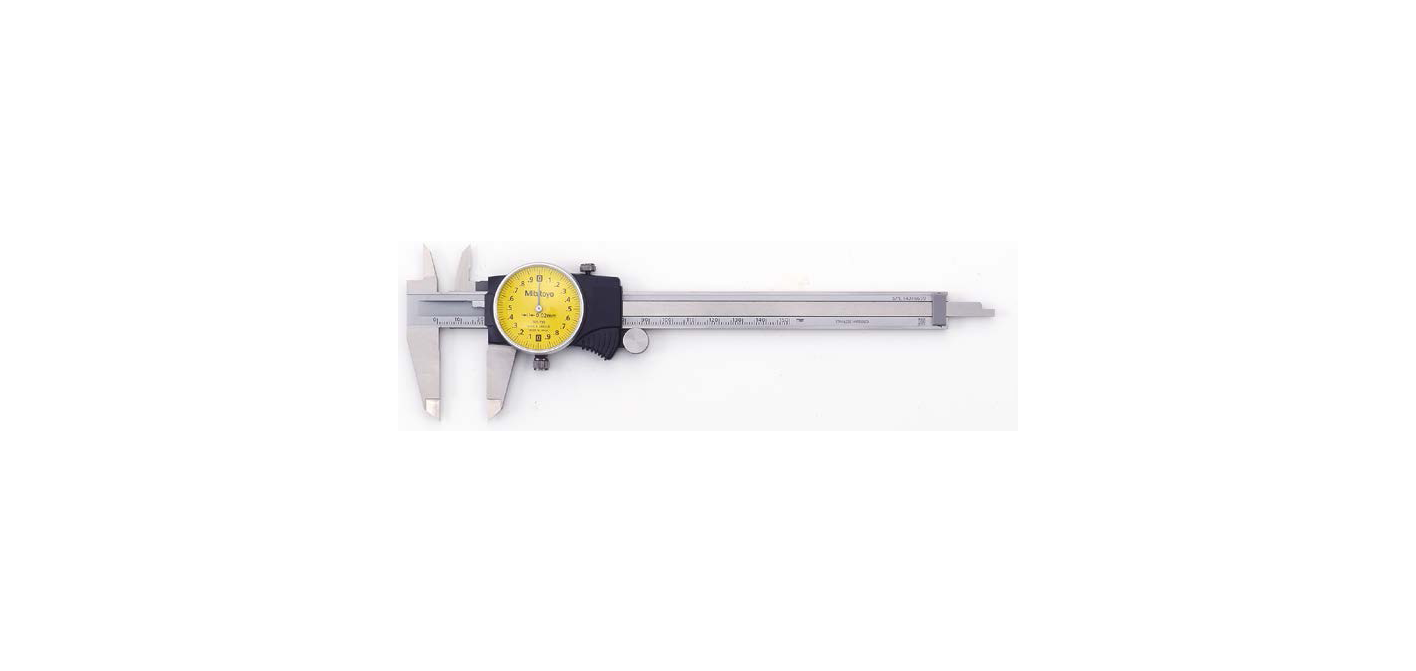

Mitutoyo 505-742 Dial Caliper 0 - 6", Graduation .001", .1"/rev
Part No. 505-742 | Range 0–6" | Graduation 0.001" | Accuracy ±0.001"
Product Overview
The Mitutoyo 505-742 is a mechanical Series 505 dial caliper with a 0–6" measuring range, 0.001" graduation and ±0.001" accuracy. It provides a practical battery-free solution for measuring outside dimensions, inside dimensions, depths and steps across a wide range of workshop and inspection applications.
The 505-742 incorporates the redesigned Series 505 dial movement, providing smooth slider operation and high shock protection for regular shop-floor use. Its analog dial provides a direct mechanical reading without batteries or electronic components.
This model has a 0.1" measuring range per revolution, with each dial graduation representing 0.001". The hardened stainless steel beam and standard hardened stainless steel jaws provide a general-purpose configuration for machining, fabrication, maintenance and incoming inspection.
Bezel and slider lock screws help retain the dial and jaw position when a measurement needs to be checked or transferred away from the workpiece. The caliper is supplied in a fitted plastic case for storage and protection.
For applications requiring a larger measuring range, the Mitutoyo 505-743 provides a 0–8" range with the same 0.001" graduation and standard jaw configuration.
Key Benefits
-
Four measurement functions in one tool: outside, inside, depth and step measurement.
-
0–6" measuring range for general workshop and inspection requirements.
-
0.001" dial graduation with ±0.001" specified accuracy.
-
0.1" measuring range per revolution for direct dial indication.
-
Mechanical operation requires no batteries.
-
Standard hardened stainless steel jaws for general-purpose measurement.
-
Shock-protected dial movement for regular workshop environments.
-
Smooth slider movement for controlled jaw positioning.
-
Bezel and slider lock screws help retain measurement settings.
-
Fitted plastic case for convenient storage and transport.
For pricing and availability in Saudi Arabia, contact General Tech Services on +966 569 289 544.
Who This Product Is Best For
The Mitutoyo 505-742 is suited to machinists, quality inspectors, maintenance technicians, fabrication teams and workshop personnel who need a mechanical dial caliper for dimensions up to 6".
Its four measurement functions make it suitable for checking outside dimensions, inside dimensions, depths and steps with one instrument. The battery-free mechanical design is also useful for workshops where measuring tools are regularly exposed to coolant, oil and other shop-floor contaminants.
For applications where the measuring jaws may experience increased wear from abrasive materials, a carbide-jaw Series 505 model can be considered. The 505-738 and 505-736, for example, use carbide-tipped jaws in different configurations.
How to Use
-
Clean the measuring jaws and workpiece before measurement.
-
Close the jaws gently and check the dial zero. Adjust the bezel if required and secure the bezel lock.
-
Open the jaws beyond the dimension being measured and position them around, inside or against the feature.
-
Close the jaws gently using the slider until the measuring surfaces contact the workpiece without excessive force.
-
Read the beam and dial indication according to the 0.001" graduation.
-
Use the slider lock when the measurement needs to be retained while removing the caliper from the part.
-
Clean the instrument after use and store it in the supplied fitted case.
For critical inspection applications, verify the caliper against a suitable reference standard and follow the applicable calibration procedure.
Frequently Asked Questions
What can the Mitutoyo 505-742 measure?
The 505-742 measures outside dimensions, inside dimensions, depths and steps across its 0–6" measuring range.
What is the graduation of the Mitutoyo 505-742?
The dial graduation is 0.001". One complete dial revolution represents 0.1" of measuring range.
How accurate is the Mitutoyo 505-742?
The specified accuracy for the 505-742 is ±0.001".
Does the Mitutoyo 505-742 require batteries?
No. The 505-742 is a mechanical dial caliper and operates without batteries.
What type of jaws does the 505-742 have?
The 505-742 uses standard hardened stainless steel jaws and is intended as a general-purpose Series 505 configuration.
What is the difference between the 505-742 and 505-736?
Both are 0–6" Series 505 dial calipers with 0.001" graduation, ±0.001" accuracy and 0.1" per revolution. The 505-742 has standard hardened stainless steel jaws, while the 505-736 has carbide-tipped outside jaws.
What is the difference between the 505-742 and 505-738?
The 505-742 has standard hardened stainless steel jaws. The 505-738 has carbide-tipped outside and inside jaws. Both have a 0–6" range, 0.001" graduation and 0.1" per revolution.
What is the difference between the 505-742 and 505-744?
Both cover 0–6" and use 0.001" graduation with ±0.001" accuracy. The 505-742 has standard hardened stainless steel jaws and 0.1" per revolution, while the 505-744 has carbide-tipped outside jaws and 0.2" per revolution.
What is the difference between the 505-742 and 505-742J?
The supplied information shows both models with a 0–6" range, 0.001" graduation and ±0.001" accuracy. The exact distinction between the 505-742 and 505-742J should be confirmed against the specific stock or current Mitutoyo documentation before ordering.
How does the 505-742 compare with the 505-743?
The main difference is measuring range. The 505-742 covers 0–6", while the 505-743 covers 0–8". Both use standard hardened stainless steel jaws, 0.001" graduation and 0.1" per revolution; their specified accuracy differs, with ±0.001" for the 505-742 and ±0.002" for the 505-743.
