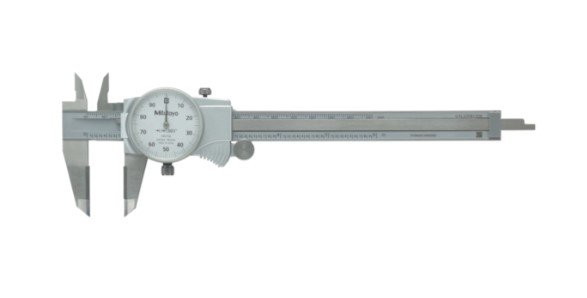

Mitutoyo 505-736 | Dial Caliper | Series 505 | OD Carbide Tipped Jaws | Graduation 0.001 Inch | Accuracy ±0.001 Inch | Range 0 - 6 Inch | Weight 175 g

Part No. 505-736 | Range 0–6" | Graduation 0.001" | Accuracy ±0.001"

Product Overview

The Mitutoyo 505-736 is a Series 505 mechanical dial caliper with a 0–6" measuring range, 0.001" graduation and ±0.001" accuracy. It measures outside dimensions, inside dimensions, depths and steps with one versatile tool, making it suitable for routine dimensional inspection and workshop measurement.

The mechanical dial design provides a direct analog reading without batteries. The Series 505 dial movement is designed for smooth slider operation and high shock protection, supporting dependable use in demanding workshop environments.

This model features carbide-tipped outside jaws. Carbide provides increased wear resistance when measuring hardened, cast or abrasive workpieces, helping maintain the condition of the measuring faces during repeated outside-dimension measurements.

The 505-736 has a 0.1" range per revolution, while each dial graduation represents 0.001". Bezel and slider lock screws allow the reading or slider position to be secured when required.

For applications requiring a larger measuring range, the Mitutoyo 505-737 provides a 0–8" range with carbide-tipped outside jaws.

Key Benefits

• 0–6" measuring range for common dimensional inspection tasks.

• 0.001" graduation with ±0.001" specified accuracy.

• Carbide-tipped outside jaws for improved wear resistance.

• Measures outside, inside, depth and step dimensions.

• Mechanical analog dial operates without batteries.

• Shock-protected dial movement for workshop use.

• Smooth slider operation for controlled positioning.

• 0.1" range per revolution for the dial.

• Bezel and slider lock screws help retain settings during measurement.

• Hardened stainless steel construction for regular industrial use.

• Supplied in a fitted plastic case for storage and transport.

For pricing and availability in Saudi Arabia, +966 569 289 544.

Who This Product Is Best For

The Mitutoyo 505-736 is suitable for machinists, quality inspectors, maintenance technicians, fabrication workshops and other users performing dimensional checks on components up to 6".

Its carbide-tipped outside jaws are particularly useful where repeated measurement of hardened, cast or abrasive surfaces can cause increased jaw wear. The battery-free dial also makes it practical for workshop environments where a straightforward mechanical measuring instrument is preferred.

It can be used for checking outside dimensions, internal dimensions, depths and steps without changing to a separate measuring instrument for each task.

How to Use the Mitutoyo 505-736

1. Clean the measuring jaws and the workpiece before measurement.

2. Close the jaws gently and check the dial zero. Adjust the bezel if required and secure it with the bezel lock.

3. Open the jaws sufficiently to clear the feature being measured.

4. Position the caliper squarely against the workpiece and close the jaws gently using the slider.

5. Read the dimension from the beam and dial according to the caliper's 0.001" graduation.

6. Use the slider lock when you need to retain the jaw position while checking or recording the measurement.

7. After use, clean the measuring surfaces and store the caliper in its fitted case.

For critical inspection work, use the caliper according to your established calibration and measurement procedures.

Frequently Asked Questions

What can the Mitutoyo 505-736 measure?

The 505-736 measures outside dimensions, inside dimensions, depths and steps across its 0–6" measuring range.

What is the accuracy of the Mitutoyo 505-736?

The specified accuracy is ±0.001", with a 0.001" dial graduation.

Does the Mitutoyo 505-736 require batteries?

No. The 505-736 is a mechanical dial caliper and does not require batteries for operation.

What type of jaws does the 505-736 have?

The model uses carbide-tipped outside jaws. The carbide-tipped OD jaws are intended to provide increased wear resistance during repeated outside-dimension measurement.

What is the difference between the 505-736 and 505-738?

Both are 0–6" Series 505 dial calipers with 0.001" graduation and ±0.001" accuracy. The 505-736 has carbide-tipped outside jaws, while the 505-738 has carbide-tipped outside and inside jaws.

What is the difference between the 505-736 and 505-744?

Both have a 0–6" range, ±0.001" accuracy and carbide-tipped outside jaws. The 505-736 has a 0.1" range per revolution, while the 505-744 has a 0.2" range per revolution.
