Mitutoyo 505-733 Dial Caliper 0 - 200 mm, Graduation 0.01 mm, 1 mm/rev
Part No. 505-733 | Range 0–200 mm | Graduation 0.01 mm | Accuracy ±0.03 mm
Product Overview

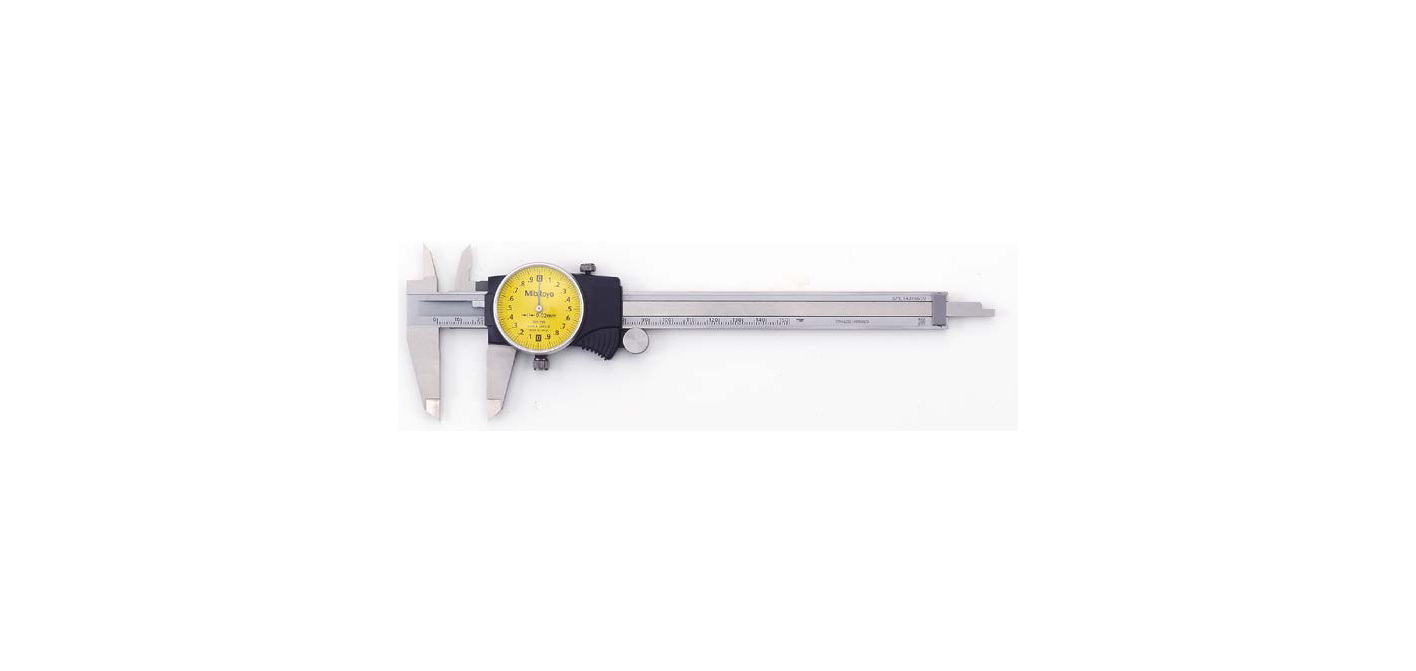

The Mitutoyo 505-733 is a mechanical Series 505 dial caliper with a 0–200 mm measuring range, 0.01 mm graduation and ±0.03 mm accuracy. It is designed for general-purpose metric dimensional measurement where a clear analog indication and battery-free operation are preferred.
The redesigned Series 505 dial movement provides smooth slider operation and high shock protection for regular workshop use. Its mechanical dial provides a direct reading without batteries or electronic components.
On the 505-733, one complete dial revolution represents 1 mm of measuring range, while each dial graduation represents 0.01 mm. This provides fine dial indication for dimensional inspection while allowing controlled movement across the 200 mm range.
The hardened stainless steel beam and standard hardened stainless steel jaws allow the caliper to measure outside dimensions, inside dimensions, depths and steps with one instrument. Bezel and slider lock screws help retain the dial and jaw positions when a measurement needs to be checked or transferred away from the workpiece.
The 200 mm range provides useful capacity for general machining, fabrication, maintenance and incoming inspection. For measurements near the full range, keeping the beam properly aligned with the feature can help maintain consistent measurement technique.
For a smaller metric range, the Mitutoyo 505-732 covers 0–150 mm.
Key Benefits
-
Four measurement functions in one tool: outside, inside, depth and step measurement.
-
0–200 mm measuring range for general metric workshop applications.
-
0.01 mm dial graduation with ±0.03 mm specified accuracy.
-
1 mm measuring range per revolution for fine dial indication.
-
Mechanical operation requires no batteries.
-
Standard hardened stainless steel jaws for general-purpose measurement.
-
Shock-protected dial movement for regular workshop environments.
-
Smooth slider movement for controlled jaw positioning.
-
Bezel and slider lock screws help retain measurement settings.
-
Fitted plastic case for convenient storage and transport.
For pricing and availability in Saudi Arabia, contact General Tech Services on +966 569 289 544.
Who This Product Is Best For
The Mitutoyo 505-733 is suited to machinists, quality inspectors, maintenance technicians, fabrication teams and workshop personnel who need a metric dial caliper for dimensions up to 200 mm.
Its four measurement functions make it useful for checking outside dimensions, inside dimensions, depths and steps with one instrument. The mechanical dial is also suitable for workshop environments where a battery-free measuring tool is preferred.
For larger components, the 505-745 provides a 0–300 mm measuring range. For smaller parts, the 505-732 covers 0–150 mm.
The 505-733 can also be considered for training and inspection environments where a mechanical dial provides a direct visual indication of measurement.
How to Use
-
Clean the measuring jaws and workpiece before measurement.
-
Close the jaws gently and check the dial zero. Adjust the bezel if required and secure the bezel lock.
-
Open the jaws beyond the dimension being measured and position them around, inside or against the feature.
-
Close the jaws gently using the slider until the measuring surfaces contact the workpiece without excessive force.
-
Read the beam and dial indication according to the 0.01 mm graduation.
-
Keep the beam properly aligned with the measured feature, particularly when working near the full 200 mm range.
-
Use the slider lock when the measurement needs to be retained while removing the caliper from the part.
-
Clean the instrument after use and store it in the supplied fitted case.
For critical inspection applications, verify the caliper against a suitable reference standard and follow the applicable calibration procedure.
Frequently Asked Questions
What can the Mitutoyo 505-733 measure?
The 505-733 measures outside dimensions, inside dimensions, depths and steps across its 0–200 mm measuring range.
What is the graduation of the Mitutoyo 505-733?
The dial graduation is 0.01 mm. One complete dial revolution represents 1 mm of measuring range.
How accurate is the Mitutoyo 505-733?
The specified accuracy for the 505-733 is ±0.03 mm.
Does the Mitutoyo 505-733 require batteries?
No. The 505-733 is a mechanical dial caliper and operates without batteries.
What type of jaws does the 505-733 have?
The 505-733 uses standard hardened stainless steel jaws and is intended as a general-purpose metric Series 505 configuration.
What is the difference between the 505-733 and 505-732?
The 505-733 covers 0–200 mm, while the 505-732 covers 0–150 mm. The 505-733 has 0.01 mm graduation and ±0.03 mm accuracy, while the 505-732 has 0.01 mm graduation and ±0.02 mm accuracy.
What is the difference between the 505-733 and 505-731?
Both models cover 0–200 mm and use standard jaws. The 505-733 has 0.01 mm graduation and 1 mm per revolution, while the 505-731 is specified with 2 mm per revolution. Check the exact order number and required dial configuration when ordering.
What is the difference between the 505-733 and 505-682?
Both are listed for a 0–200 mm range with standard jaws and 1 mm per revolution. The supplied specifications identify the 505-733 with 0.01 mm graduation and ±0.03 mm accuracy. The 505-682 is an earlier order number with the same 0–200 mm and 0.01 mm configuration in the supplied catalogue data; availability and current order-number status should be confirmed before substitution.
Is the Mitutoyo 505-733 a digital caliper?
No. The 505-733 is an analog mechanical dial caliper. It does not require batteries and provides readings through its mechanical dial.
How do I buy the Mitutoyo 505-733 in Saudi Arabia?
Contact General Tech Services in Dammam on +966 569 289 544 or email mathews@generaltechsaudi.com to request current pricing and delivery information.
