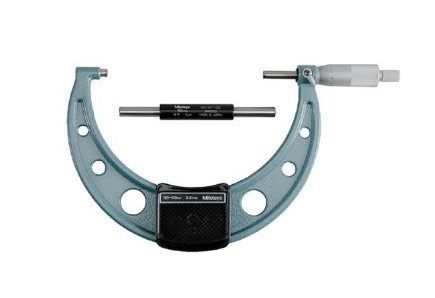

Mitutoyo 103-143-10H | Outside Micrometer | Series 103 | Graduation 0.01mm | Accuracy ±4 µm | Range 150 to 175mm
The Mitutoyo 103-143-10H Outside Micrometer delivers precise measurements with a graduation of 0.01mm. It offers an impressive accuracy of ±4 µm for high-reliability results. With a measurement range of 150mm to 175mm, it is ideal for larger components. The micrometer features a durable hardened steel anvil and spindle, ensuring long-term use. Its ergonomic design allows for comfortable and accurate handling during measurements. Perfect for precision measurement tasks in automotive, manufacturing, and engineering industries.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-4 µm |
Digital/Analog | Analog |
Flatness | 0.6 µm |
Graduation | 0.01 mm |
Inch-Metric | Metric |
Measuring Force | 5 - 10 N |
Parallelism | 3 µm |
Range | 150-175 mm |
Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
Spindle pitch | 0.5 mm |
Spindle thread | With spindle lock, ƒ ̧6,35 mm (¢°¤300 mm) ƒ ̧ 8 mm (>300 mm) |
Type | Outside Micrometer |
Weight | 720 g |
- High Precision: Offers a graduation of 0.01mm for accurate measurements.
- Exceptional Accuracy: Provides an accuracy of ±4 µm for highly reliable results.
- Measurement Range: Suitable for measuring parts within the 150mm to 175mm range.
- Durable Construction: Features hardened steel anvil and spindle for enhanced durability and longevity.
- Ergonomic Design: Designed for comfortable and precise handling during use.
- Versatile Application: Ideal for precision measurements in automotive, manufacturing, and engineering industries.
