Matherne Unitized Mud Gauge | 6 in Dial, up to 15,000 psi

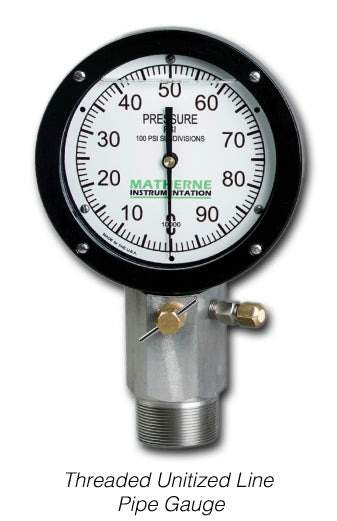

The Matherne unitized mud gauge (UMG) combines an inverted 6 in gauge, a 2 in NPT stainless steel hex housing, a diaphragm cup or piston isolator housing, a check valve and a pulsation damper stem in one assembly. It is used on blowout preventers, choke manifolds and in cementing, acidizing, fracturing and gravel packing work. Standard ranges run from 0-1,000 psi to 0-15,000 psi, and the dial can be read from more than 50 ft away.
Key features

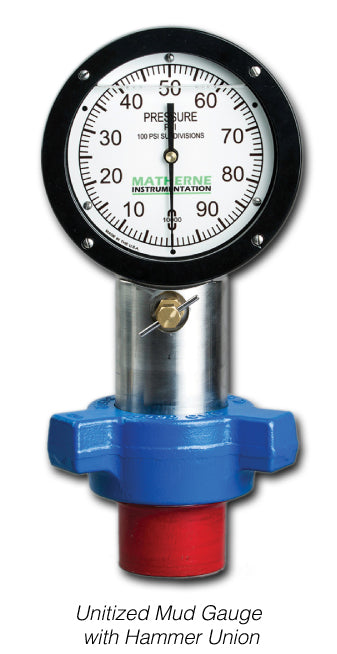

- Piston isolator housing available with 2 in Fig. 1502 hammer union, or Fig. 2202 for H2S service
- Fluid-filled indicator to reduce shock, vibration and corrosion
- Adjustable damper for steady pointer movement
- Replaceable diaphragm cup and check valve for servicing on location
- Metric equivalents in kg/cm², kPa, MPa and bar
Ordering specifications: pressure capacity; metric, English or dual-scale dial; standard 2 in NPT or hammer union; standard or H2S service.
For pricing, please contact our experts.
