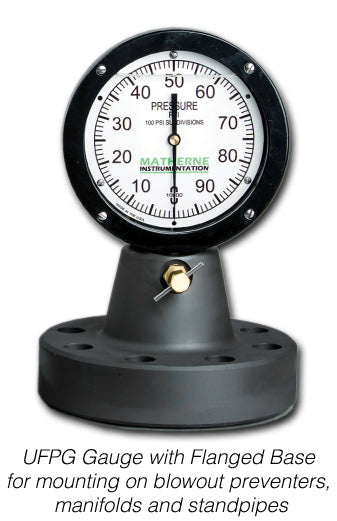

Matherne Flange Mounted Pressure Gauge | 6 in Dial, 0-1,000 to 0-15,000 psi, API 6A Flange
The Matherne Flange Mounted Pressure Gauge packs a complete mud pressure system into one assembly: an inverted 6 in gauge on a flanged base made to API 6A specifications, fitted with a check valve and pulsation damper stem. Standard ranges go from 0-1,000 psi up to 0-15,000 psi. It is used on blowout preventers, choke manifolds and standpipes, and in cementing, acidising, fracturing, gravel packing and pipeline pressure work.
Key features
- 6 in dial readable from more than 50 ft away
- Flanged base for secure mounting
- Fluid-filled indicator with adjustable damper
- Replaceable diaphragm cup and check valve for fluid loading, serviceable on location
- Metric equivalents in kg/cm², MPa, kPa and bar
Ordering specifications: indicator capacity, flange type, ring groove size, ring groove finish (standard, stainless steel or nickel inlay) and API 6A PSL level for the flange.
For pricing, please contact our experts.
