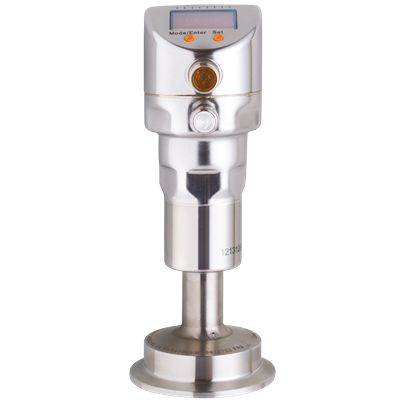

ifm PI2306, PI Series Pressure Sensor, -0.124bar Min, 2.5bar Max, Analogue Output, Relative Reading - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PI2306 | Pressure Sensor | -0.124bar to 2.5bar, -0.124bar to 2.5bar

Part Number : PI2306

The ifm PI2306 is a pressure sensor with pressure range -0.124bar to 2.5bar, pressure range -0.124bar to 2.5bar and output type Analogue.

Pressure Reading Type: Relative
Pressure range: -0.124bar to 2.5bar
Accuracy: ± 0.2
Output Type: Analogue

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic flush pressure sensor with display provides accurate and reliable measurement of pressure across a range of applications, primarily designed for the food and beverage industry. Featuring a robust design with gold-plated contacts, the device excels in monitoring viscous media and liquids with suspended particles at a medium temperature of up to 200 °C. With an alphanumeric display that presents critical data clearly, it ensures ease of use and functionality. The sensor is equipped with various outputs, including digital and analogue options, making it highly versatile for integration into existing systems. Its IP67 to IP69K protection ratings guarantee durability in challenging environments, making it an ideal choice for demanding applications.

Flush mountable design suitable for food and beverage applications
High accuracy with a switch point accuracy of less than ±0.2%
Multiple output signals, configurable for switching and analogue
Integrated watchdog and reverse polarity protection for enhanced reliability

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	-0.124bar
Maximum Pressure Reading	2.5bar
Accuracy	± 0.2
Output Type	Analogue
Series	PI
