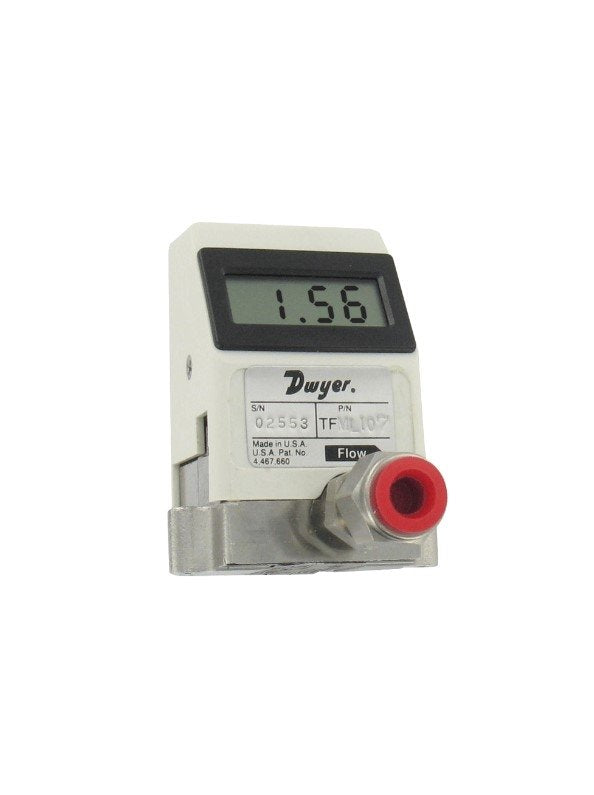

Dwyer TFM-LI09 | Liquid Turbine Flow Meter with LCD | 1 to 10 LPM, 3/8" OD, 316 SS
Part Number : TFM-LI09
The Dwyer TFM-LI09 is a liquid turbine flow meter for 1 to 10 LPM (16 to 160 GPH), connected through a 3/8" OD fitting. A turbine wheel with electro-optical detection turns flow into a linear 0 to 5 VDC signal from the TFM-LI09 for data logging and recording. A 3-1/2 digit LCD on the TFM-LI09 shows the flow rate.
- TFM-LI09 needs 11.5 to 15 VDC (35 mA at 12 VDC) via a power adapter or mating cable, sold separately
- Operating temperature 41 to 131°F (5 to 55°C), weight 0.80 lb (380 g) (TFM-LI09)
- TFM-LI09 accuracy and linearity ±1% FS, repeatability ±0.2% FS
- Maximum operating pressure of the TFM-LI09: 500 psig (34.5 bar)
- Wetted parts: 316 SS, acetal, sapphire, glass, epoxy, fluoroelastomer (TFM-LI09)
Free Saudi Arabia shipping available
For pricing, please contact our experts.
