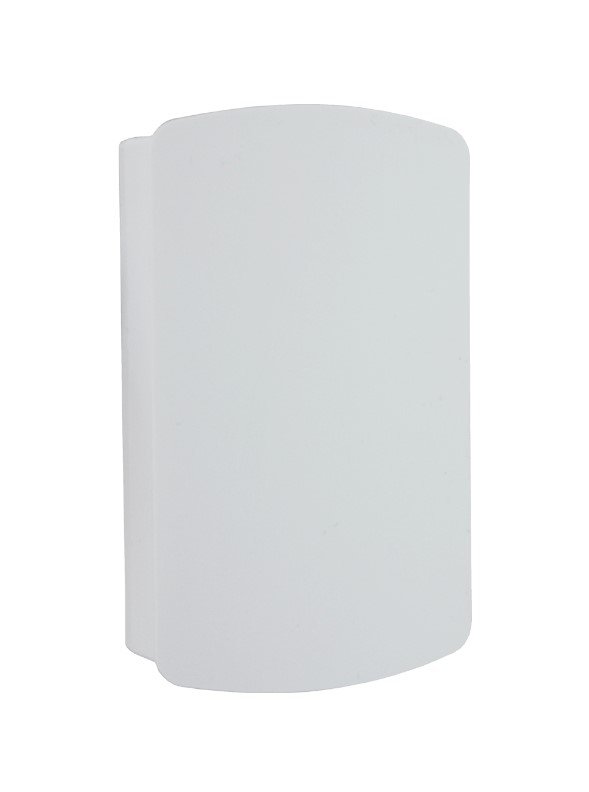

Dwyer RHP-2O22 | Humidity/Temperature Transmitter | OSA Mount, ±2% RH, 0-10 VDC Outputs
The Dwyer RHP-2O22 is an outside air (OSA) mount humidity and temperature transmitter with ±2% RH accuracy. It provides a 0-10 VDC RH output and a 0-10 VDC temperature output from a capacitance polymer humidity sensor.
- RH accuracy ±2% from 10 to 90% RH at 25°C
- Measures 0 to 100% RH; operating limits -40 to 140°F (-40 to 60°C)
- OSA enclosure in polycarbonate, NEMA 4X (IP66)
- Response time 15 s; drift below 1% RH per year
- Voltage models run from 15-35 VDC or 15-29 VAC
- Specifications
- Features
- Downloads
| Part Number | RHP-2O22 |
| Brand | Dwyer |
| Mounting | Outside air (OSA) |
| Sensor | Capacitance polymer |
| RH Accuracy | ±2% (10 to 90% RH at 25 °C) |
| RH Range | 0 to 100% RH |
| RH Output | 0-10 VDC |
| Temperature Output | 0-10 VDC |
| Compensated Range | -4 to 140 °F (-20 to 60 °C) |
| Response Time | 15 s |
| Operating Temperature | -40 to 140 °F (-40 to 60 °C) |
| Power | 15-35 VDC or 15-29 VAC |
| Enclosure | Polycarbonate, NEMA 4X (IP66) |
| Weight | 1 lb (0.45 kg) |
- Lower installation costs when temperature and humidity are combined.
- With 2%, 3%, and 5% accuracy and a wide range of temperature sensors, there is a wide application environment.
- Lower system operating costs thanks to the radiation barrier that shields the sensor from heat radiation.
