Name: Dwyer Instruments PI PISTON | In-line variable area flowmeter
Brand: Dwyer
SKU: PI PISTON
Availability: OutOfStock

Part Number : PI PISTON

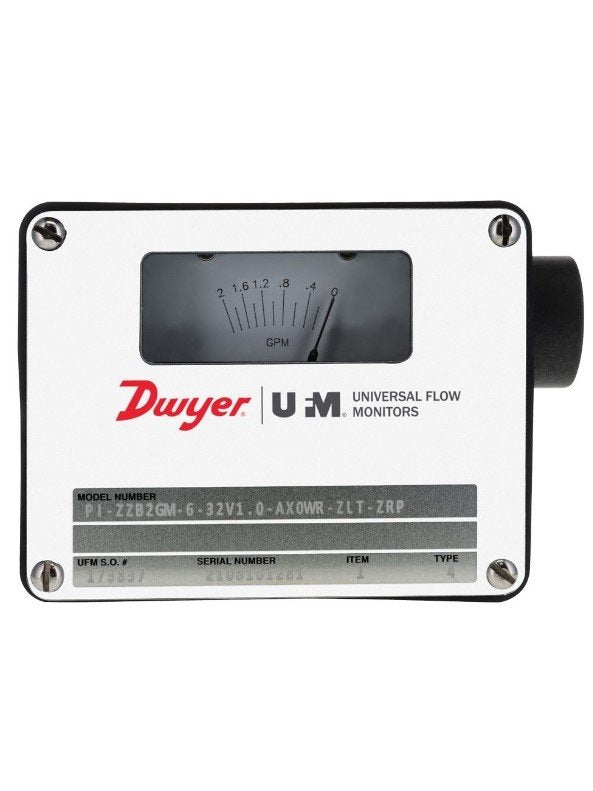

A range of mechanical piston variable area flow meters with choices for both visual and electronic output is called the Series PI Piston In-Line Variable Area Flowmeter. Digital LCD versions with pointer or numeric displays for inscribed scale are available for the Series PI. It provides options for mechanical switch output as well as electronic output, including HART® protocol and 4–20 mA analog output. It can handle liquids with viscosities up to 650 centistokes and has pipe sizes ranging from 1/4" to 1" (8 to 25 mm) and flows of 0.25 to 30 GPM (5 to 100 LPM).

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2% or +/-1% FS (model selectable)
Approvals	CE, ETL
Connection	Electrical: 3/4 Œ¢1 NPT for A, L, Z and T-box enclosures; 1/2 Œ¢1 NPT for R-box enclosure
Connection	Process: Female NPT, SAE, BSPT, BSPP or ANSI RF flanges (model selectable)
Deadband	Alarm output: 2.5% FS for up to 1/2" 5% FS for larger than 1/2".
Display	Standard analog scale and pointer display with optional numeric digital LCD (model selectable)
Enclosure Rating	NEMA 12 (IP52), NEMA 4 (IP66) or NEMA 4X (IP65) (model selectable)
Installation	Orientation: In-line and in any position
Manufacturer	Dwyer Instruments
Material	Wetted: Flow body: Aluminum, brass or 316 SS Piston: 316L SS Seal: Buna-N or Viton®
Maximum Operating Pressure	Aluminum and brass: 500 psi (34.5 bar) 316 SS: 1500 psi (103.4 bar) (3:1 safety factor)
Maximum operating temperature	200°F (93°C) or HT option 400°F (205°C) Transmitters HT 300°F (150°C) Ambient temperature: 150°F (65°C) CSA listed only to 105°F (41°C)
Output	4-20 mA (model selectable)
Power	Standard: None; 4-20 mA analog output or HART® protocol: 10-30 VDC, 0.25 A @ 24 VDC Intrinsically safe transmitter*: 10-24 VDC, 0.25 A @ 24 VDC
PRESSURE	Drop: 5 psi (0.35 bar) at FS
Range	See flow rate chart on catalog page
Repeatability	1% of reading
Response Time	250 ms
Straight Pipe Run	Zero straight pipe runs before or after, meter required
Switch Output Compliance	General purpose or rated for hazardous locations (all classes, groups and divisions) (model selectable)
Type	In-line variable area flowmeter
Viscosity	650 centistokes max
Weight	10 to 20 lb (4.5 to 9.1 kg) (model dependent)

There must be no straight pipe runs before or after the meter.
Power is not needed for standard mechanical sensor pointers or switches.
10:1 rejection rate to increase measurement versatility.
Rugged, made entirely of metal.
Mounting in multiple directions.
