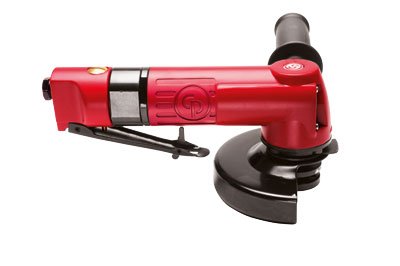

Chicago Pneumatic CP9121AR | Pneumatic Angle Grinder | 125 mm (5 in) wheel, 600 W
Chicago Pneumatic rates the CP9121AR air angle grinder at 600 W (0.8 hp) for 125 mm (5 in) wheels, with a free speed of 12,000 rpm. Easy to handle, this model uses a lightweight but rugged housing for general maintenance grinding.
- Spindle thread: M14
- Weighs 2.1 kg (4.62 lb) at 240 mm (9.6 in) long
- Air inlet thread 1/4 in with 10 mm minimum hose size; free speed air consumption 9.9 l/s (21 cfm)
- Actual air use of 13 l/s (27.56 cfm)
- Rated sound pressure of 84 dB(A) and vibration of 6.7 m/s²
- Ordering reference 6151957321
- Specifications
- Features
| Part Number | CP9121AR |
| Brand | Chicago Pneumatic |
| Free Speed | 12,000 rpm |
| Air Inlet Thread | 1/4 in |
| Length | 240 mm (9.6 in) |
| Vibration | 6.7 m/s² |
| Wheel Size | 125 mm (5 in) |
| Power | 600 W (0.8 hp) |
| Spindle Thread | M14 |
| Net Weight | 2.1 kg (4.62 lb) |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Free Speed) | 9.9 l/s (21 cfm) |
| Air Consumption (Actual) | 13 l/s (27.56 cfm) |
| Sound Pressure Level | 84 dB(A) |
- Keyless adjustable protective guard
- Aluminum alloy housing
- Helical bevel gear design
- 5" (125 mm) wheel capacity
- M14 spindle thread
- 0.8 hp (600 W) governed motor
- Ergonomic side handle
- Technical description click to collapse contents
