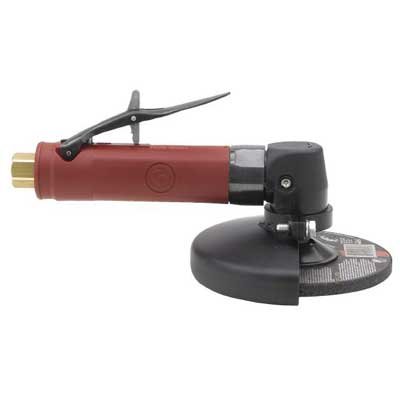

Chicago Pneumatic CP3019-20A3 | Pneumatic Angle Grinder | 75 mm (3 in) wheel, 375 W
Chicago Pneumatic rates the CP3019-20A3 air angle grinder at 375 W (1/2 hp) for 75 mm (3 in) wheels, with a free speed of 20,000 rpm. It is designed for demanding applications, with service intervals of up to 2,000 hours and an ergonomic compact body.
- Net weight 0.3 kg (0.7 lb), length 163 mm (6.4 in)
- 1/4 in air inlet, minimum hose 8 mm, free speed air consumption 6 l/s (12.72 cfm)
- Actual air consumption: 9 l/s (19.08 cfm)
- Sound pressure 82.6 dB(A), vibration 13.3 m/s²
- Manufacturer product number 6151607070
- Specifications
- Features
| Part Number | CP3019-20A3 |
| Brand | Chicago Pneumatic |
| Wheel size | 75 mm (3 in) |
| Power | 375 W (1/2 hp) |
| Free speed | 20,000 rpm |
| Net weight | 0.3 kg (0.7 lb) |
| Length | 163 mm (6.4 in) |
| Air inlet thread | 1/4 in |
| Min. hose size | 8 mm (5/16 in) |
| Air consumption (free speed) | 6 l/s (12.72 cfm) |
| Air consumption (actual) | 9 l/s (19.08 cfm) |
| Sound pressure level | 82.6 dB(A) |
| Vibration | 13.3 m/s² |
| Manufacturer product number | 6151607070 |
- Highly durable bevel gear
- Compact body
- Insulating composite over housing
- Streamlined safety lever
- Rear exhaust
- 3" (73 mm) wheel capacity
- 0.5 hp (375 W) governed motor
- 20,000 rpm free speed
