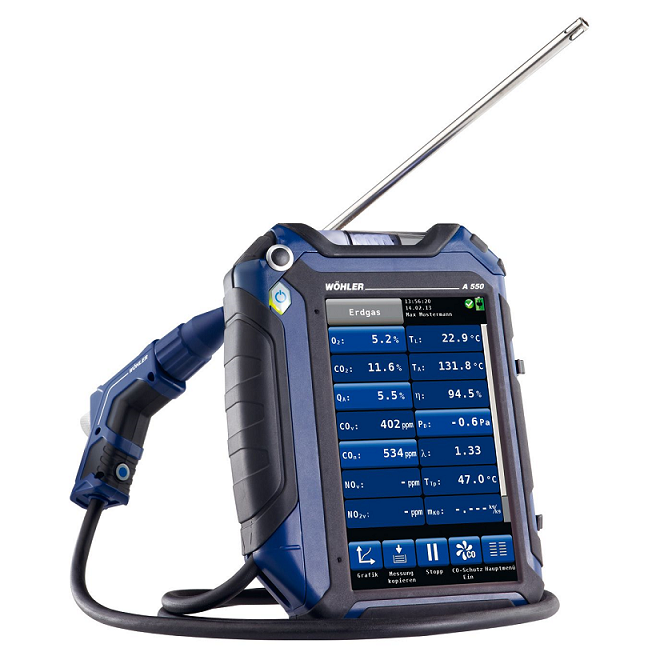

Wöhler 8150 | A 550 Flue Gas Analyser | 4,000 ppm CO sensor (H2 compensated), 7" touchscreen
The Wöhler A 550 is a robust flue gas analyser for residential and commercial heating appliances, operated by a 7-inch touchscreen. This version has a 4,000 ppm H2-compensated CO sensor and an O2 sensor, supports up to four sensors, and includes a 4 Pa test and a wood moisture function to VDI 4206.
Key features
- 7-inch colour touchscreen for analyses, inspections and settings
- Coded connections for the 4 Pa test
- Wood moisture measurement function to VDI 4206 (with optional wood moisture probe)
- Spillage test and Wöhler tuning guide
- Field-replaceable sensors, analyser self-diagnostics and visual filter alarm
- 48-month sensor and analyser warranty (per manufacturer comparison table)
- Optional combustion air temperature probe and wood moisture probe
- Specifications
- Downloads
| Part Number | 8150 |
| Brand | Wöhler |
| Dimensions | 220 x 160 x 55 mm (without probe) |
| Weight | 1,250 g |
| Display | 7 inch colour touchscreen |
| Memory | 1,000 measurement records |
| Interfaces | USB, infrared, WiFi |
| Oxygen (O2) | 0 to 21 Vol.-%, accuracy +/-0.3 Vol.-% |
| Flue Gas Temperature | -20 to 800 C (NiCr-Ni), resolution 0.1 C |
| Combustion Air Temperature | -20 to 100 C |
| Draught / Differential Pressure | 0 to +/-110 hPa, 4 Pa test |
| Carbon Monoxide (CO) | 0 to 4,000 ppm, H2-compensated, resolution 1 ppm, accuracy +/-20 ppm (<400 ppm) otherwise 5 % of measurement |
| Wood Moisture | 10 to 40 %, resolution 0.1 % (electrical resistance, VDI 4206 Part 4) |
| Battery | Lithium-ion 3.6 V, 6,700 mAh, approx. 12 h operation |
| Possible Sensors | 4 |
