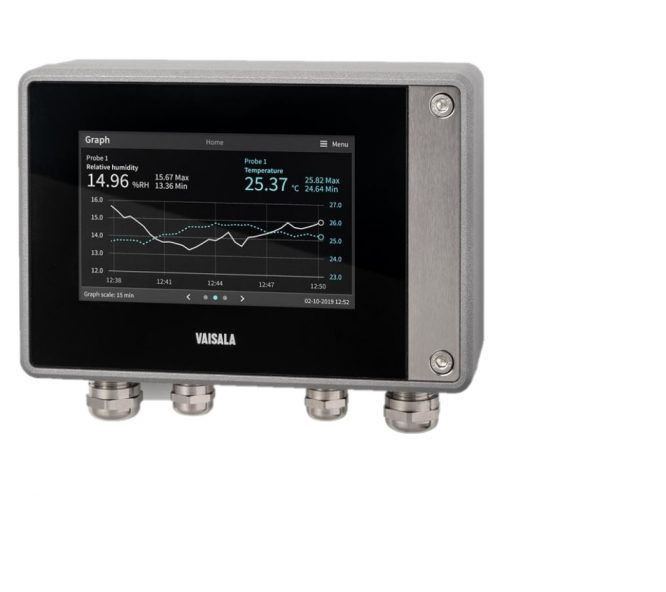

Vaisala Indigo 520 | Indigo 500 Series Transmitter | IP66, Touchscreen
Part of the Vaisala Indigo 500 family, the Indigo 520 transmitter hosts standalone smart probes and runs from a 100-240 VAC, 50/60 Hz supply. Readings can be viewed on its touch display or sent onward via relays, analogue outputs or Modbus TCP/IP.
- Probes connect plug-and-play and detach easily for calibration
- Graphical touch interface for configuration
- Extends wiring, supply voltage and connectivity options for the probes
- IP66 / NEMA 4 metal housing
- Specifications
- Features
- Downloads
| Part Number | Indigo 520 |
| Brand | Vaisala |
| Display | Graphical, touch screen interface |
| Protection | IP66 |
| Power | 100 to 240 VAC 50/60 Hz |
The Vaisala Indigo 500 Transmitter family comes in two versions:
- Transmitter Vaisala Indigo 510.
Two analogue outputs from a single probe input (such as RH&T from a single probe).
- Transmitter Vaisala Indigo 520.
permits two relay switches, four analogue outputs, and up to two probe inputs.
For instance, the heated HMP7 sensor and separate TMP1 temperature probe would necessitate the use of the Indigo 520.
Vaisala Indigo 500 offers the following probe options:
- Humidity and temperature probes: HMP1, HMP3, HMP4, HMP5, HMP7, HMP8, HMP9, and TMP1
- Dew point probes: DMP5, DMP6, DMP7, DMP8
- CO2 probes: GMP251, GMP252
- Vaporized hydrogen peroxide probes: HPP271, HPP272
- MMP8 moisture in oil probe
