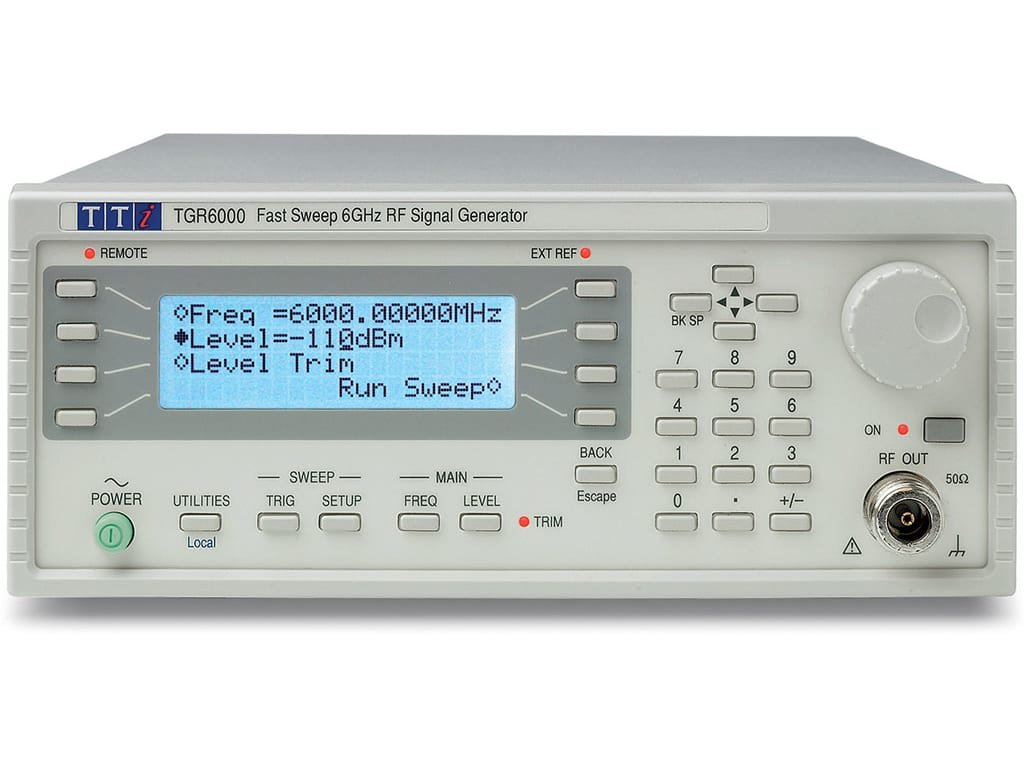

Aim-TTi TGR6000 | RF Signal Generator | 10MHz to 6GHz

Name: Aim-TTi TGR6000 | RF Signal Generator | 10MHz to 6GHz
Brand: Aim Tti
SKU: TGR6000
Availability: OutOfStock

Part Number : TGR6000

The Aim-TTi TGR6000 is a 6GHz RF signal generator covering 10MHz to 6000MHz in a compact half-rack 2U case. It offers -110dBm to +7dBm output, list sweeps of up to 1000 points and locking to an external frequency standard, with full remote control over RS232, USB, LAN and GPIB for lab and system use.

Key features

10MHz to 6000MHz with 10Hz setability
±1ppm frequency stability; external reference locking
-110dBm to +7dBm amplitude in 0.1dB steps
Stepping sweeps with dwell down to 10ms; 1000-point list sweep
Storage for 12 set-ups and 16 sweep lists
RS232, USB, LAN and GPIB interfaces

Availability: in stock

Free Saudi Arabia shipping available

Detailed Description
Specifications
Features
Downloads

Aim-TTi RF Signal Generator, 10 Hz Frequency Resolution, 6 GHz Maximum Frequency - TGR6000

This RF signal generator by Aim-TTi is a versatile equipment operating within a 10MHz to 6,000MHz frequency range. It offers high resolution frequency output and can be controlled through various interfaces such as GPIB, LAN, RS232, and USB. It is designed for precision and reliability in CW applications that features low phase noise and low leakage. With a compact design and user-friendly interface, this signal generator is ideal for a range of applications across industries.

Features & Benefits

â€¢ Operates in the 10MHz to 6,000MHz frequency range with a 10Hz frequency resolution
â€¢ Multiple inputs including AC In, Reference In, and Trig In for versatile connectivity
â€¢ Interface Type: GPIB, LAN, RS232, USB for remote control and monitoring
â€¢ High resolution frequency output with a resolution of 0.1 dB for precise signal generation
â€¢ Can be used for linear and logarithmic sweeps, providing flexibility in signal modulation
â€¢ Compact 2U casing with low weight for convenient bench or rack placement

Applications

â€¢ Precision frequency testing in electronics manufacturing
â€¢ Calibration of communication equipment
â€¢ Signal analysis in research and development
â€¢ RF signal generation for educational purposes

Can it operate within a wide frequency range?

This RF signal generator covers a frequency range from 10MHz to 6,000MHz, providing versatility in signal generation.

Is it easy to control remotely?

Yes, the interface options including GPIB, LAN, RS232, and USB allow for full remote control of the generator.

Will it provide precise frequency output?

With a resolution of 0.1 dB and high accuracy, this signal generator ensures precise frequency outputs for various applications.

Part Number	TGR6000
Brand	Aim-TTi
Frequency Range	10 MHz to 6000 MHz
Setability	10 Hz
Stability	±1 ppm
Amplitude	-110 dBm to +7 dBm, 0.1 dB steps
List Sweep	Up to 1000 points
Memory	12 set-ups, 16 sweep lists
Case	Half-rack 2U
Interfaces	RS232, USB, LAN, GPIB

TGR6000 Synthesised Signal Generator 6GHz with sweep inc GPIB/RS232/LAN(LXI)
10MHz to 6000MHz frequency range
Accuracy better than 1ppm over 15 o C to 30 o C
Ageing better than 1 ppm over one year
External frequency reference input
Low phase noise and low leakage
-110dBm to +7dBm amplitude, 0.1dB steps
Amplitude entry in dBm, µV / mV, or dBµV
User compensation tables for specific test set-ups
Fast stepping sweep with dwell times down to 10ms
Internal or externally triggered sweep, lin or log, up or down
List sweep of up to 1000 points of amplitude vs frequency
Storage for 12 generator set-ups and 16 sweep lists
Compact half-rack 2U casing uses minimum bench space
Full remote control through RS232, USB, LAN or GPIB
