Aim-TTi TGP3151 | Pulse and Universal Generator | 50MHz, Single Channel

Name: Aim-TTi TGP3151 | Pulse and Universal Generator | 50MHz, Single Channel
Brand: Aim Tti
SKU: TGP3151
Availability: OutOfStock

Part Number : TGP3151

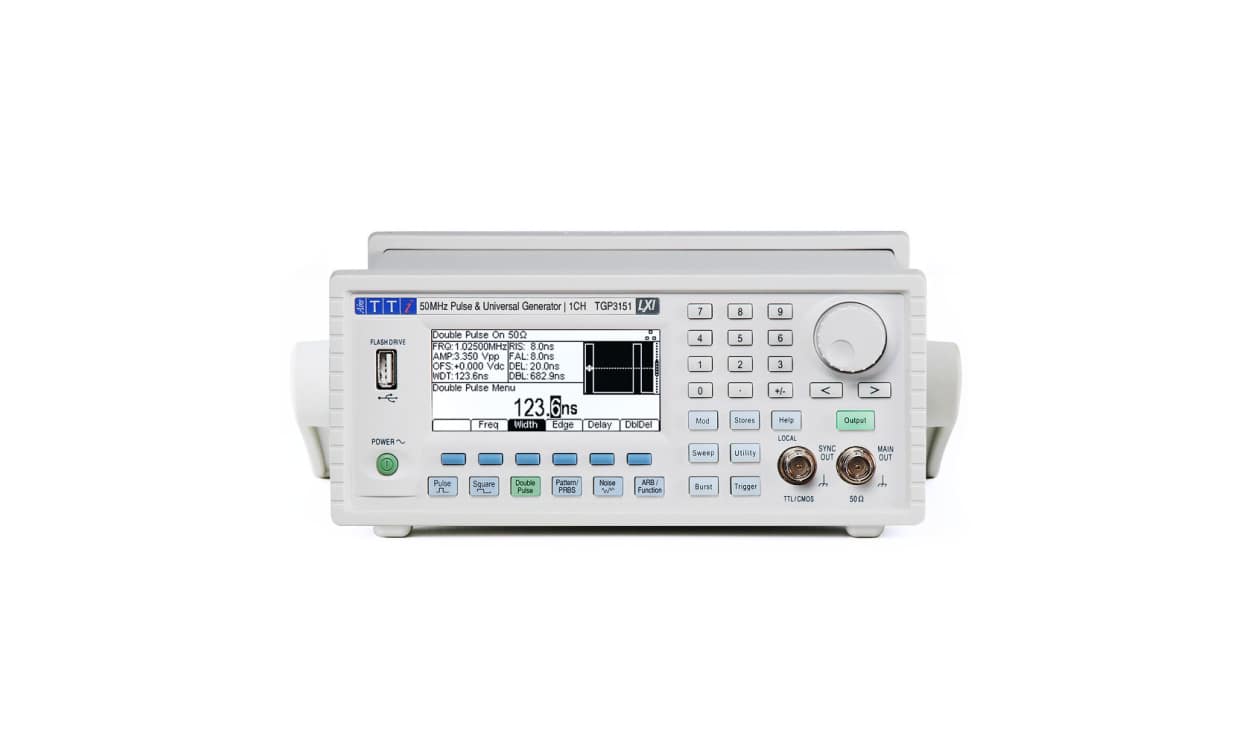

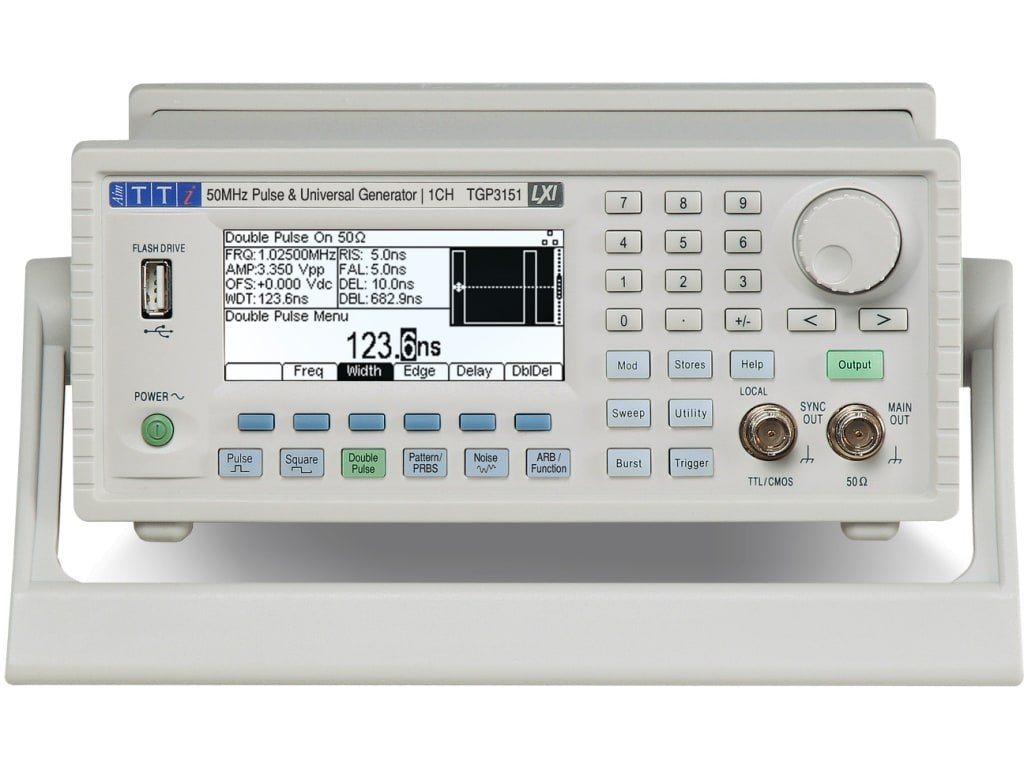

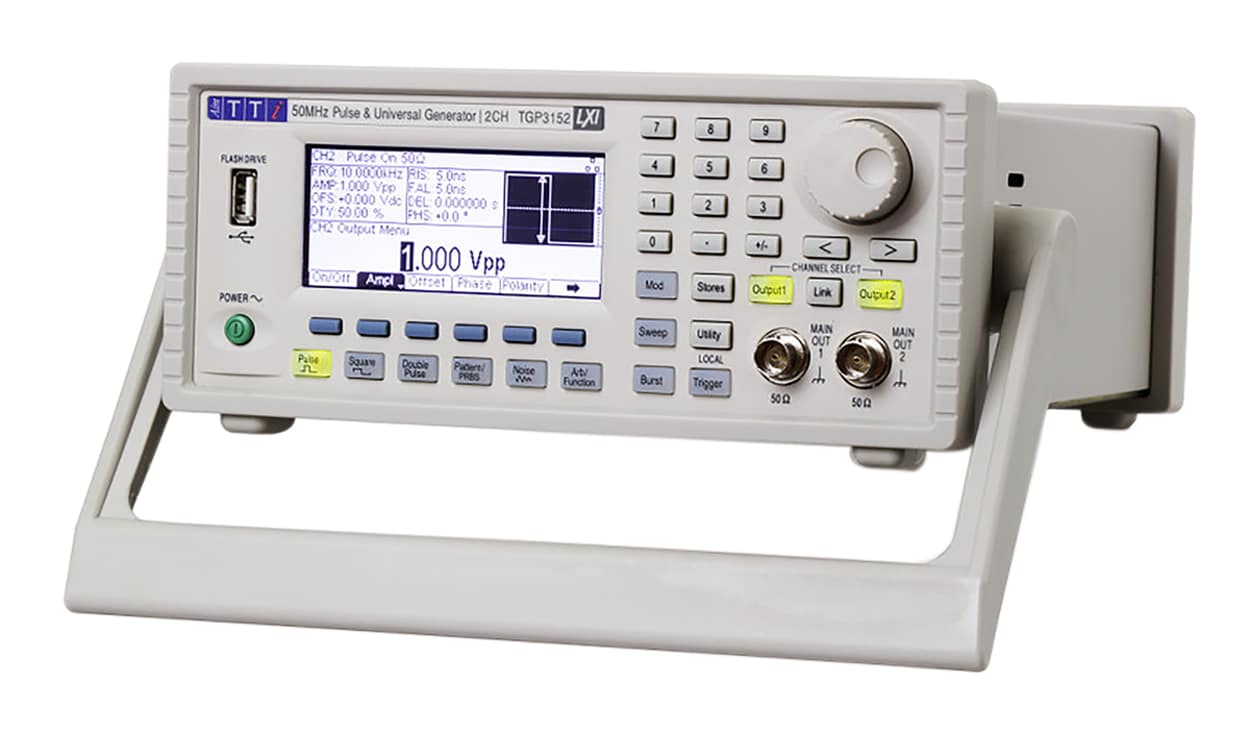

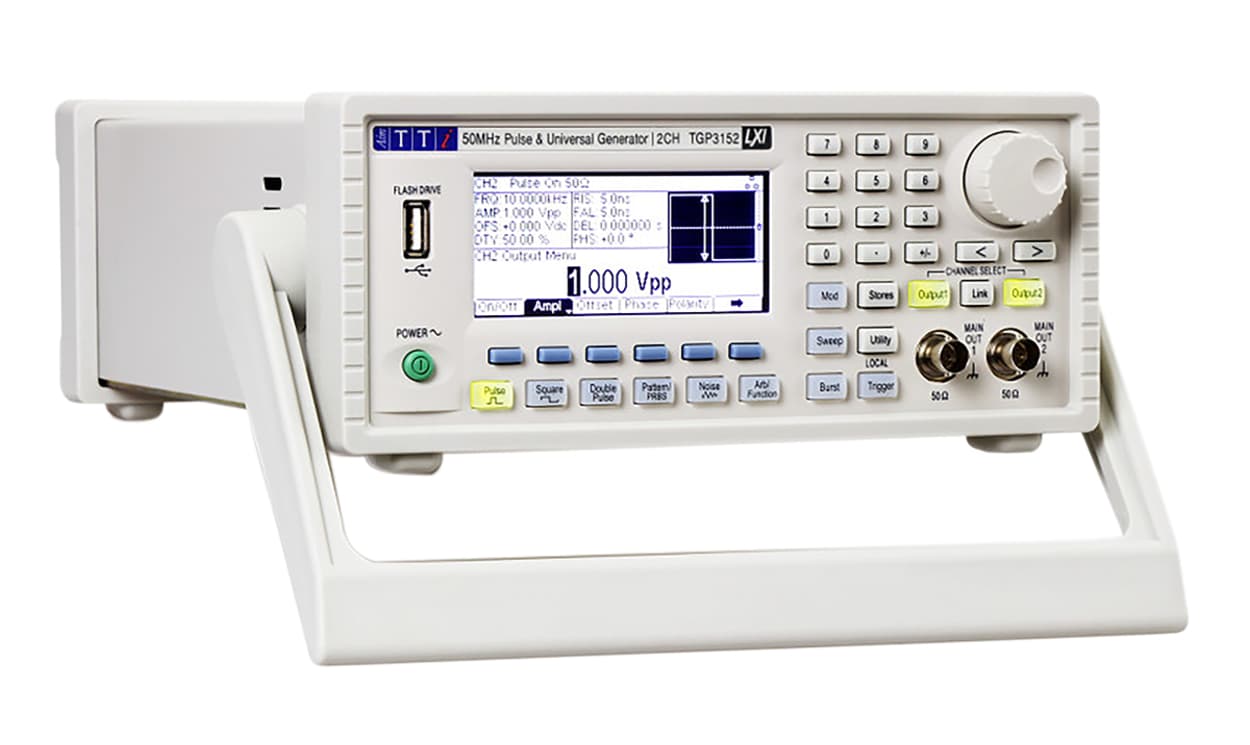

The Aim-TTi TGP3151 is a single-channel 50MHz pulse and universal generator with 5ns minimum rise time. Besides pulse, double pulse and PRBS outputs, it can act as a full arbitrary/function generator with 16 waveform types and sine waves up to 50MHz, giving one instrument for many bench signal needs.

Key features

Pulses from 1mHz to 50MHz
5ns minimum rise time; edges variable up to 800s
Sine waves up to 50MHz; 16 waveform types
Arbitrary at 800MS/s with 16-bit resolution
Low jitter, triggered pulses or pulse reconstruction

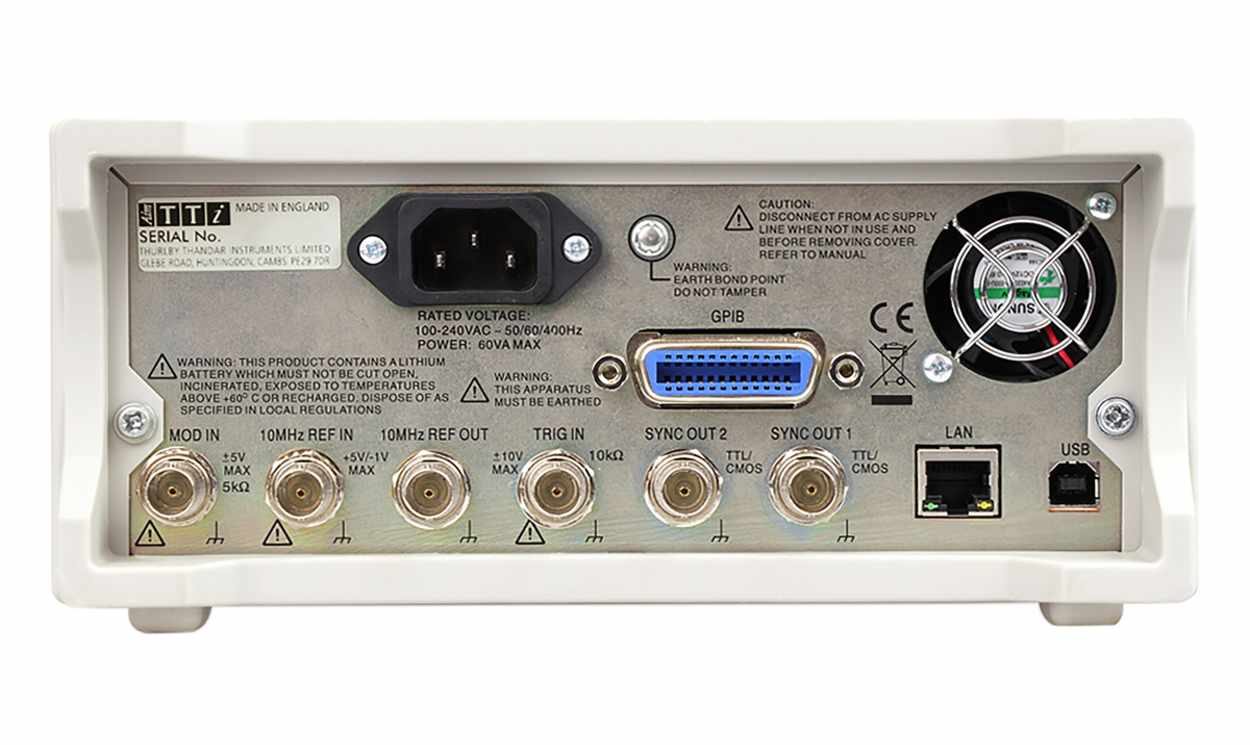

USB, LXI LAN and front USB flash drive; GPIB optional

Availability: in stock

Free Saudi Arabia shipping available

Detailed Description
Specifications
Features
Downloads

Aim-TTi Pulse Generator, 10 kO Input Impedance, 1 Channel - 59120-5340

This pulse generator by Aim-TTi is a versatile and advanced piece of equipment designed for applications in areas such as automation, electronics, electrical, and mechanical industries. With adjustable output amplitude and high frequencies, it offers precise and reliable performance for various applications.

Features & Benefits

â€¢ Adjustable output amplitude for precise control
â€¢ High frequency capability for applications requiring fast pulses
â€¢ Pulse width modulation for flexible waveform generation
â€¢ Triggered burst mode for specific pulse sequencing
â€¢ Compact design for both benchtop and rack mount applications

Applications

â€¢ Used for stress testing designs requiring defined jitter and delay
â€¢ Ideal for clock frequency simulation with glitch-free parameter changes
â€¢ Suitable for creating data sequencing patterns for serial data testing
â€¢ Efficient for asynchronous pulse signal conditioning
â€¢ Helps in Op Amp slew rate and asymmetrical characterisation

Can it be used for clock frequency simulation applications?

Yes, it is ideal for simulating clock frequencies with glitch-free changes in pulse parameters.

Will it assist in stress testing designs?

Yes, it is designed for stress testing designs with defined jitter and delay requirements.

Is it suitable for data sequencing patterns?

Yes, it can efficiently generate data sequencing patterns for serial data testing applications.

Can it be used for signal conditioning?

Yes, it is suitable for asynchronous pulse signal conditioning purposes.

Is it helpful in Op Amp slew rate measurements?

Yes, it facilitates Op Amp slew rate and asymmetrical characterisation tasks.

Part Number	TGP3151
Brand	Aim-TTi
Channels	1
Pulse Frequency	1 mHz to 50 MHz
Min Rise Time	5 ns
Sine	Up to 50 MHz
Timing Resolution	100 ps or 11 digits
Output	20 V pk-pk into 50 Ohm (unmatched)
Interfaces	USB, LAN (LXI)
GPIB	Optional

Low jitter asynchronous operation, externally triggered pulses or pulse reconstruction
High drive capability output can provide 20V pk-pk into 50 (unmatched)
Wide range of pulse modulations including AM.FM, PM, FSK, BPSK, SUM, PWM, PDM
using internal or external modulation sources.
Triggered (burst count) or gated operation using internal or external trigger sources
Full Noise generator to 25MHz with selectable crest factor and user defined distribution
Full Arbitrary/Function generator with 16 waveform types
Sine waves up to 50MHz
Arbitrary waveforms at 800MS/s sampling rate and 16-bit vertical resolution
Extensive internal/external modulation of all waveform types
Linear and logarithmic sweeps of all waveform types
Pulse waveforms from 1mHz to 50MHz, minimum rise time 5ns
Pulse, pulse pattern and PRBS waveforms
Pulse period, width and delay resolutions of 100ps or 11 digits
Independently variable rise and fall times from 5ns to 800 seconds
