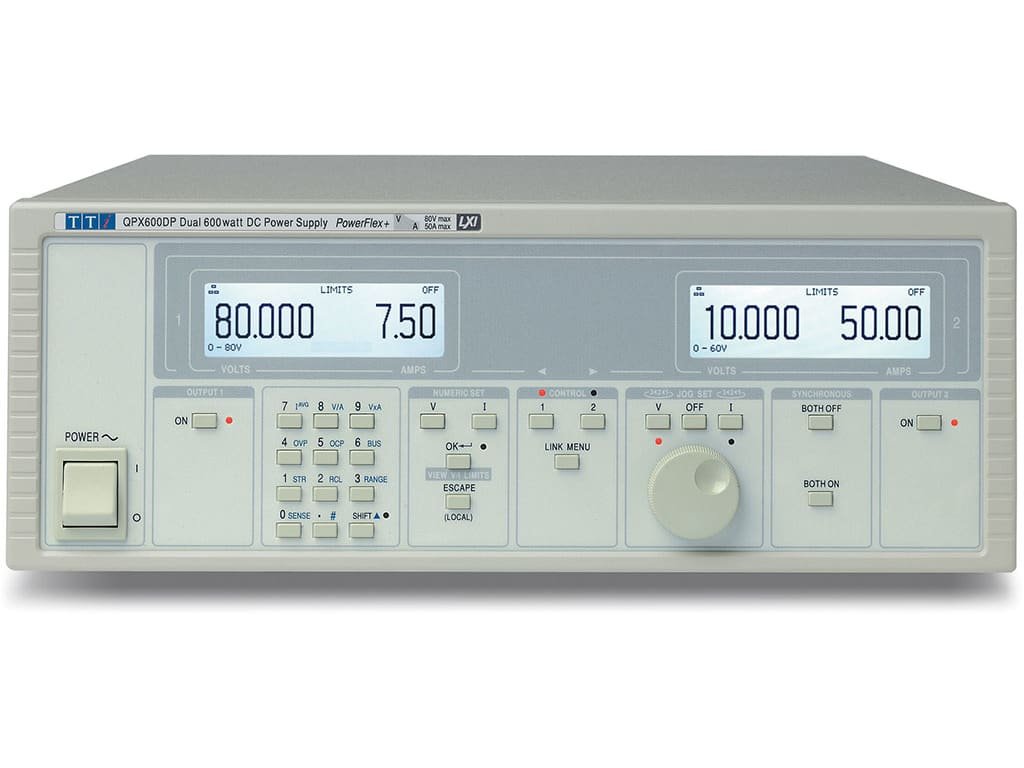

Aim-TTi QPX600DP | Programmable Dual Output DC Power Supply | 2 x 80V/50A 600W, USB, RS232 & LAN/LXI
QPX600DP is the dual-output Aim-TTi QPX600D with remote control added through USB, RS-232 and LAN/LXI, plus a GPIB option. Each output covers up to 80V or 50A within 600W, giving automated test systems two high-power programmable channels from one instrument. It can be used on the bench or mounted in a rack.
Key features
- Dual outputs: 2 x 80V/50A, 600W
- USB, RS-232 and LAN/LXI interfaces
- Optional GPIB interface
- Low output ripple and noise below 3mV rms
- 1mV setting resolution; front and rear terminals
- Detailed Description
- Specifications
- Features
- Downloads
Dual Output 1.2kW PowerFlex, 80V/50A Programmable DC Power Supply
Ultra-wide range of voltage/current combinations
Up to 80V and up to 50A within each power envelope
Isolated tracking of voltage only, or voltage and current
Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
Low output noise and ripple - fast transient response
High setting resolution of 1mV
Variable OVP and OCP trips
Analog control interfaces for voltage and current
RS-232, USB and LAN (LXI) interfaces
Standards
Supplied with
Aim-TTi Series QPX Bench Power Supply, IEC 320 Input Connector, 600W Power Rating - QPX600D
Features & Benefits
• Smart tracking and metering for easy series/parallel operation
• Ultra-wide range of voltage/current combinations
• Variable OVP and OCP trips for added protection
• Analogue, RS-232, USB, GPIB, and LAN interfaces for comprehensive connectivity
• Low output noise and ripple for precise power delivery
Applications
• Suitable for applications requiring high current and variable voltage ranges
Can it be used for both bench-top and system applications?
Will it provide reliable smart tracking and metering functions?
Is it suitable for applications requiring high voltage or current simulations?
| Part Number | QPX600DP |
| Brand | Aim-TTi |
| Outputs | 2 |
| Interfaces | USB, RS-232, LAN (LXI) |
| Setting Resolution | 1 mV |
| GPIB | Optional |
| Per Output | 80 V / 50 A, 600 W |
| Ripple and Noise | <3 mV rms at full power |
Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
Low output noise and ripple
High setting resolution of 1mV
Variable OVP and OCP trips
Analog control interfaces for voltage and currentQPX600DP Dual 600W PowerFlex Max 80V or 50A RS232/USB/LAN(LXI)/Analog/GPIB Analog Power Supplies
Dual independent or tracking 600 watt outputs
Ultra-wide range of voltage/current combinations
Up to 80V and up to 50A within each power envelope
Isolated tracking of voltage only, or voltage and current
