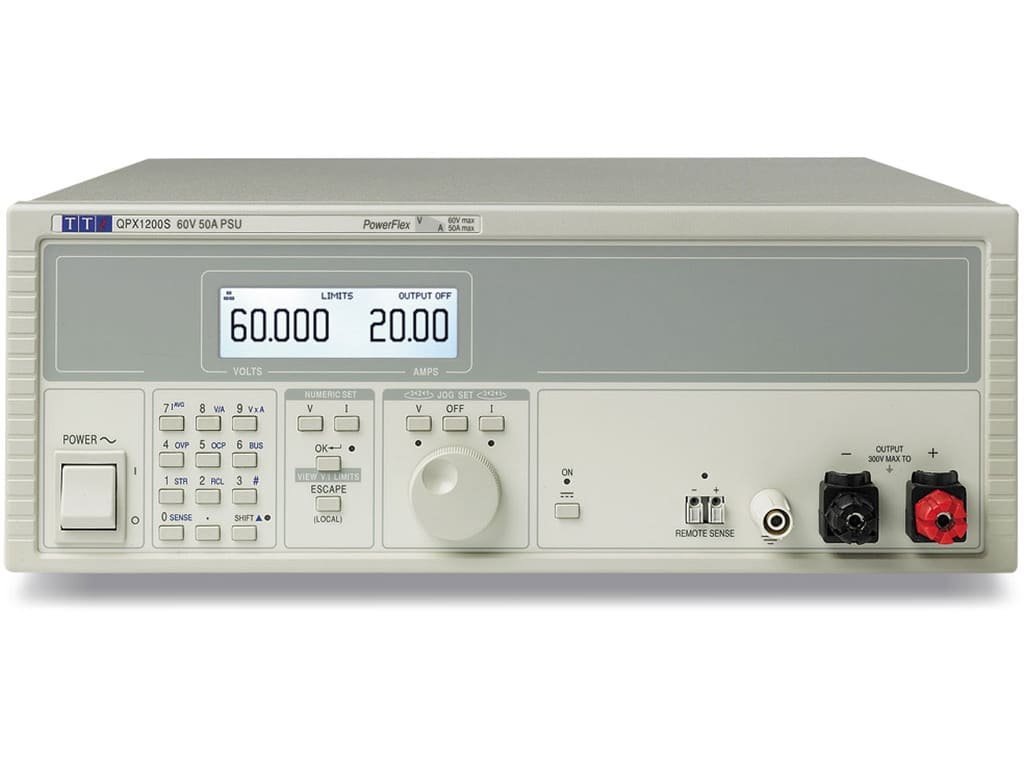

Aim-TTi QPX1200S | High Power Bench DC Power Supply | 60V/50A 1200W PowerFlex, No Bus Interfaces
Part Number : QPX1200S
The Aim-TTi QPX1200S is a single-output 1200W supply using PowerFlex regulation, which allows a wide range of voltage and current combinations up to 60V and 50A within its power envelope. This version has no bus interfaces and is intended for high-current bench work such as motor, battery-system and power electronics testing.
Key features
- Single output up to 60V and up to 50A, 1200W
- PowerFlex regulation for flexible V/I combinations
- Output ripple and noise below 3mV rms at full power
- 1mV setting resolution
- Bench or rack mounting with front and rear terminals
Free Saudi Arabia shipping available
For pricing, please contact our experts.
1.2KW PowerFlex, 60V/50A QPX1200S & SP
Suitable for bench or system use with terminals front and rear. The PowerFlex design offers voltage and current combinations between 60V/20A and 20V/50A. Mixed mode regulation with linear output stage gives low output noise. Both versions include an analogue interface. The SP version includes USB, RS232 and LAN (Ethernet) with support for LXI.
For an optional GPIB module see stock number 144-5481.
PowerFlex design gives variable voltage/current combinations
Up to 60V and up to 50A within power envelope
Setting by direct numeric entry or spin wheel
High setting resolution 1mV
3U sized casing suitable for bench-top or rack mounted use, front and rear terminals
Analogue remote control interface
Full range of digital interfaces, RS232, USB,LXI compliant LAN
Up to 60V and up to 50A within power envelope
Setting by direct numeric entry or spin wheel
High setting resolution 1mV
3U sized casing suitable for bench-top or rack mounted use, front and rear terminals
Analogue remote control interface
Full range of digital interfaces, RS232, USB,LXI compliant LAN
Note
Supplied with
Manual, mains lead and CD containing driver software
Supplied with
Test Bridge Logging and sequencing software
- Multi instrument control
- Logging to table and graph format
- Timed sequence control across all instruments and channels
- USB, LAN and RS232 compatible
