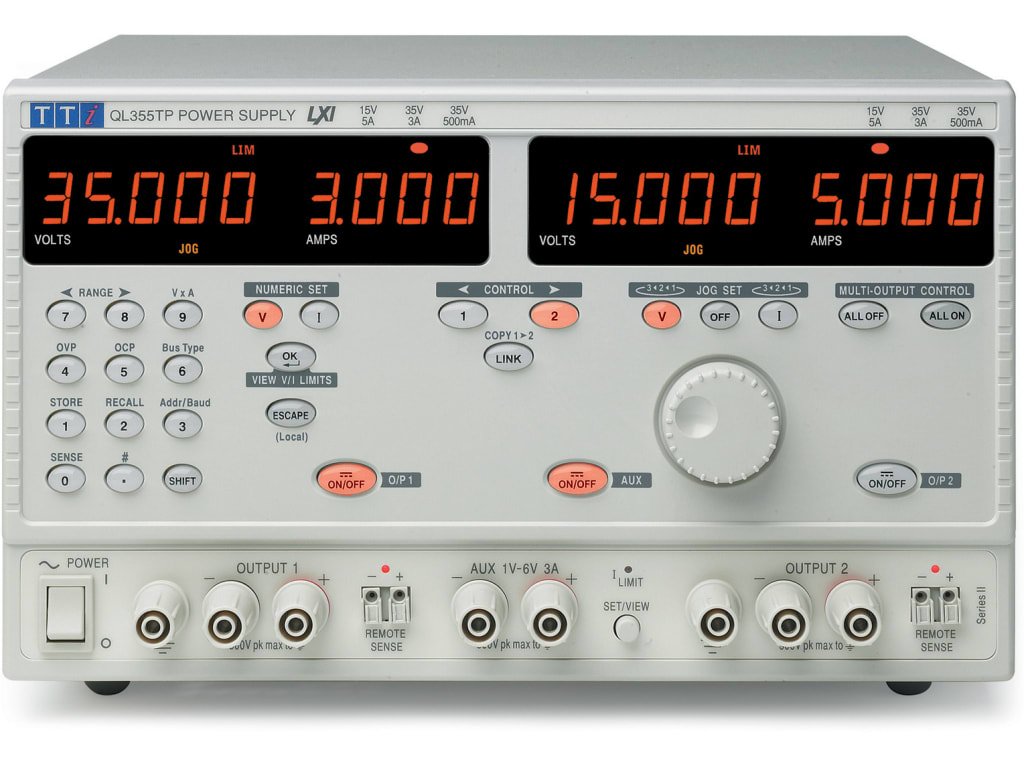

Aim-TTi QL355TP | Programmable Triple Precision Power Supply | 2 x 35V/3A or 15V/5A + 1-6V/3A, USB/RS232/LAN
The QL355TP brings bus control to the Aim-TTi triple-output QL355T. Two precision main outputs each give 35V/3A or 15V/5A and the auxiliary output is variable from 1V to 6V at 3A, while USB, RS-232 and LXI-compliant LAN allow remote programming in automated test and characterisation work.
Key features
- 2 x 35V/3A or 15V/5A main outputs
- Auxiliary 1.00V to 6.00V output at 3A
- USB, RS-232 and LXI-compliant LAN interfaces
- Duplicate power and sense terminals at the rear
- Multiple non-volatile set-up memories
- Detailed Description
- Specifications
- Features
- Downloads
The terminals are available at the front and rear
The input is 500 max
The size is 280 x 160 x 290 mm
The weight is 10.6 kg
| Part Number | QL355TP |
| Brand | Aim-TTi |
| Outputs | 3 |
| Regulation | Linear, precision |
| Interfaces | USB, RS-232, LAN (LXI) |
| Main Outputs | 2 x 35 V / 3 A or 15 V / 5 A |
| Auxiliary Output | 1.00 to 6.00 V at 3 A |
| Rear Terminals | Power and sense |
Multiple non-volatile setting memories
OVP and OCP trips with alarm output
Selectable remote sense terminals
Linked-mode operation of main outputs (triple)
Auxiliary output fully variable 1.00V to 6.00V at 3A (triple)
Full control and read-back of all outputs via the bus
LAN interface conforms with LXI class C
Compact modular width for bench or rack, front and rear mounted terminals
1mV resolution at up to 56 volts
Multiple ranges for increased current flexibility
