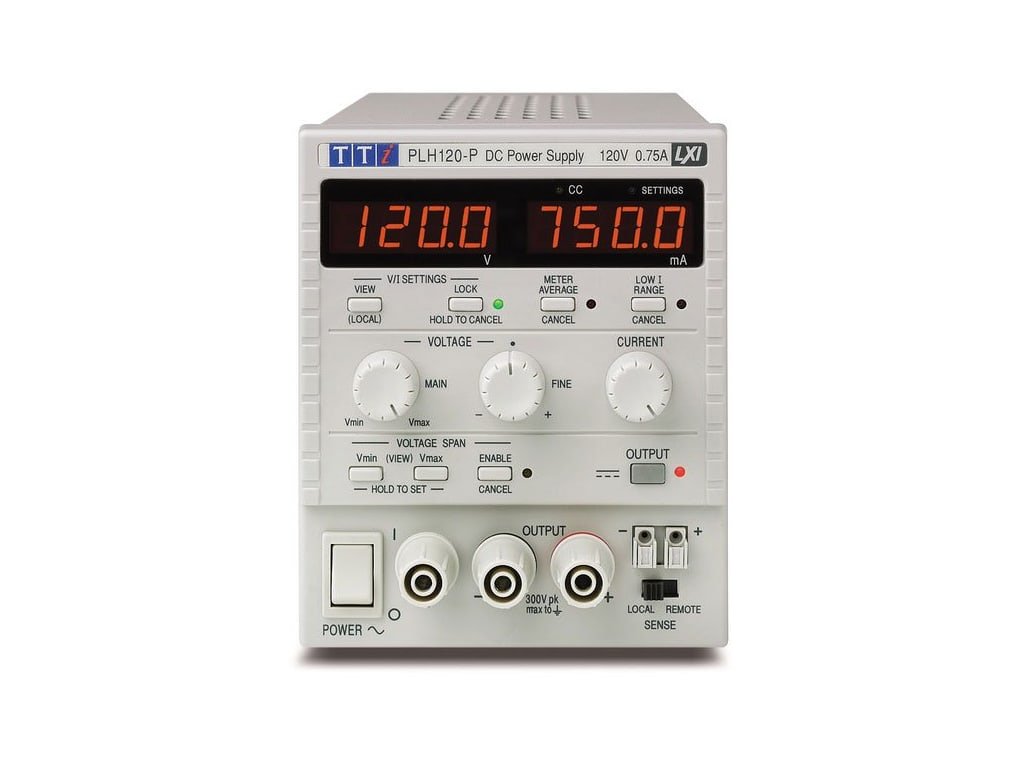

Aim-TTi PLH120-P(G) | Higher Voltage Linear DC Power Supply | 0-120V/0-0.75A, USB/RS232/LAN/GPIB
The Aim-TTi PLH120-P(G) is the 0-120V/0-0.75A PLH model with GPIB in addition to USB, RS232, LAN(LXI) and analogue interfaces. It suits GPIB-equipped test systems that require a higher voltage linear supply.
Key features
- Single 0-120V/0-0.75A output, 90W
- Digital remote control and readback via RS-232, USB and LAN (LXI) plus GPIB
- Isolated analogue remote control; interfaces opto-isolated from output
- Linear regulation with true analogue controls
- S-Lock setting lock and V-Span voltage range customisation
- Low current range and current meter averaging
- DC output switch and 'view limits' button
- Specifications
- Features
- Downloads
| Part Number | PLH120-P(G) |
| Brand | Aim-TTi |
| Outputs | 1 |
| Regulation | Linear |
| Output Rating | 0-120V/0-0.75A |
| Interfaces | USB, RS232, LAN(LXI), analogue, GPIB |
| Controls | Analogue, S-Lock, V-Span |
| Output Power | 90W |
| Terminals | Front and rear |
LAN Interface conforms with LXI standard
Interfaces are opto-isolated from outputs
IVI Driver supplied
Isolated Analog remote control of V and I
Front and rear terminals
Selectable remote sense terminals
PLH120-P(G) Single Higher Voltage DC Power Supply, 0-120V/0-0.75A USB/RS232/LAN/GPIB
High performance linear regulated power supplies
Full digital remote control and readback
RS-232, USB and LAN (Ethernet), GPIB
