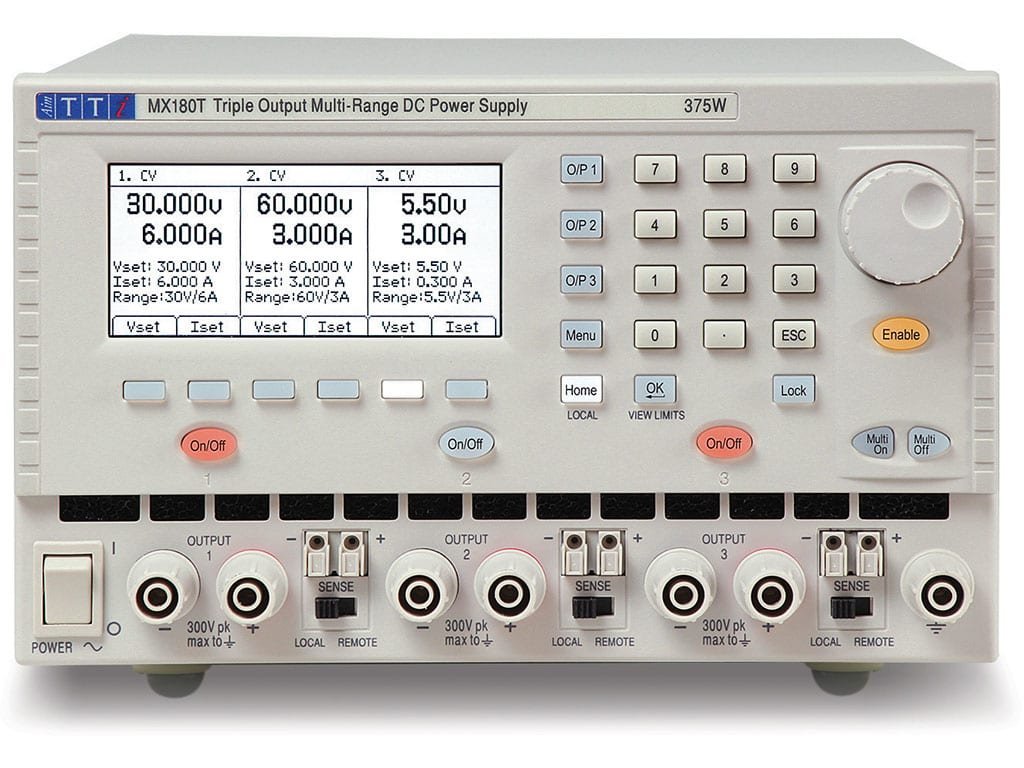

Aim-TTi MX180T | Multi-Range Triple Output DC Power Supply | 378W, 2 x 180W + 1 x 18W
The Aim-TTi MX180T is a 378W multi-range supply with three full-performance outputs: two rated at 180W and a third at 18W. Without interfaces, it suits bench users who need two higher power outputs plus a lower power auxiliary output.
Key features
- Three outputs: 2 x 180W plus 1 x 18W, 378W total
- No remote interfaces
- Range switching gives variable voltage/current combinations
- Shared power mode provides double power from a single output
- Linear final regulation for low output noise and ripple
- Setting resolution up to 1mV and 0.1mA; variable OVP and OCP
- Output on/off control with programmable delay sequencing
- Specifications
- Features
- Downloads
| Part Number | MX180T |
| Brand | Aim-TTi |
| Outputs | 3 |
| Regulation | Linear final regulation |
| Output Rating | 2 x 180W + 1 x 18W |
| Interfaces | None |
| Setting Resolution | Up to 1mV / 0.1mA |
| Total Power | 378W |
| Memories | 50 per output + 50 linked |
| Case | 3U rack case |
High power outputs each capable of 30 volts at 6 amps
Range switching provides up to 120 volts or up to 20 amps
Low power output provides up to 12 volts or up to 3 amps
Range switching gives variable voltage/current combinations
Shared power mode provides double power from a single output
Low output noise and ripple via linear final regulation
2x(30V/6A) & (5.5V/3A) or 2x(15V/10A) & (12V/1.5A) or 2x(60V/3A) or (30V/12A) or (15V/20A) or (60V/6A) or (120V/3A)
Three high performance outputs each with full functionality
375 watts plus of total power
Two high power outputs plus one low power output
