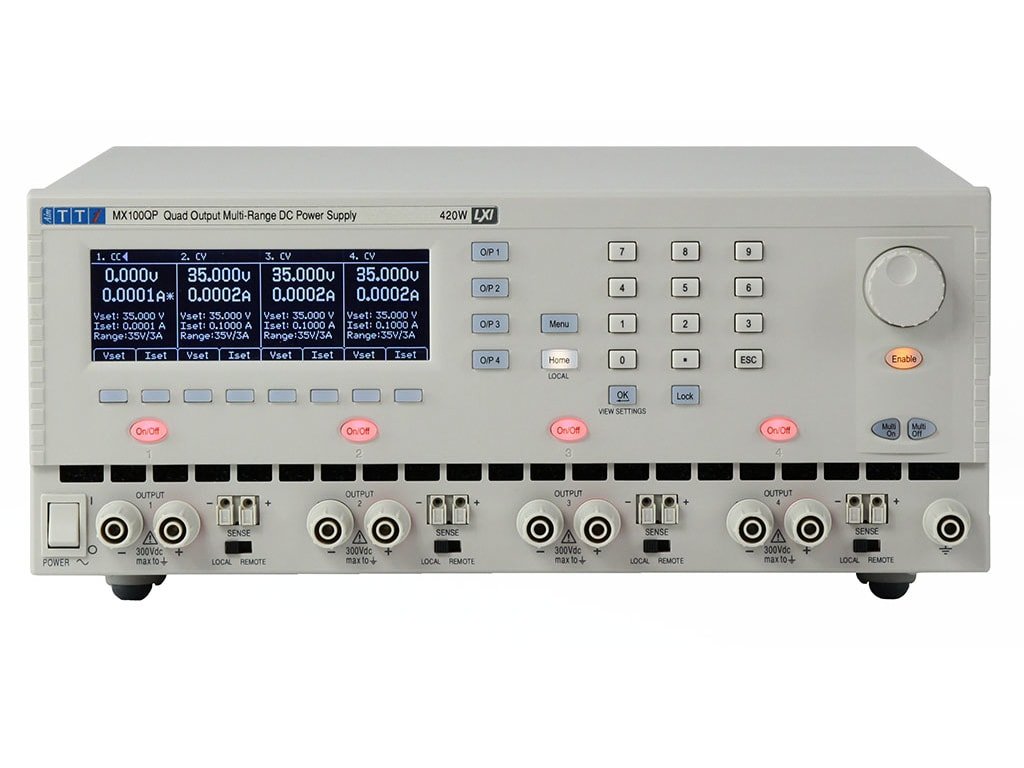

Aim-TTi MX100QP S2 | Multi-Range Quad Output DC Power Supply | 4 x 35V/3A, 420W, USB/RS232/LAN
Combining four 35V/3A outputs and 420W with USB, RS232 and LAN interfaces, the Aim-TTi MX100QP S2 is the remotely programmable Series 2 quad model. GPIB is optional, and free Test Bridge software supports logging and control in system or ATE use.
Key features
- Four 35V/3A outputs, 420W total
- Series 2: colour display, enhanced power sharing and TripLink trips
- RS-232, USB and LAN (LXI) interfaces; GPIB optional; rear power and sense terminals
- Range switching gives variable voltage/current combinations
- Shared power mode provides double power from a single output
- Linear final regulation for low output noise and ripple
- Setting resolution up to 1mV and 0.1mA; variable OVP and OCP
- Specifications
- Features
- Downloads
| Part Number | MX100QP S2 |
| Brand | Aim-TTi |
| Outputs | 4 |
| Regulation | Linear final regulation |
| Output Rating | 4 x 35V/3A |
| Interfaces | USB, RS232, LAN (GPIB optional) |
| Setting Resolution | Up to 1mV / 0.1mA |
| Total Power | 420W |
| Memories | 50 per output + 50 linked |
| Case | 3U rack case |
| Display | Colour graphic LCD (Series 2) |
High setting resolution of up to 1mV and 0.1mA
Variable OVP and OCP trips on all outputs
50 setting memories per output plus 50 linked memories
Selectable voltage tracking (isolated tracking)
Selectable current meter averaging
Four high performance outputs each with full functionality
Includes USB, RS232, LAN and GPIB Interfaces
Range switching gives variable voltage/current combinations
Shared power mode provides double power from a single output
Low output noise and ripple via linear final regulation
