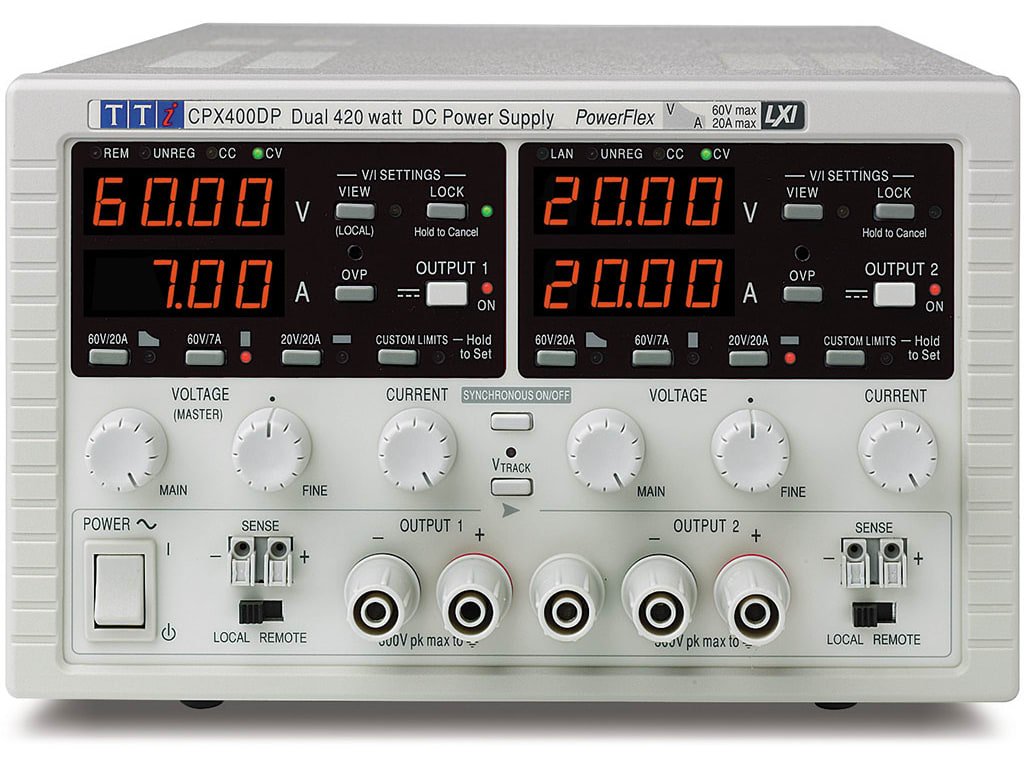

TTi CPX400DP | PowerFlex Dual output 840 watt PSU with USB, RS232, LAN
One of Aim-most TTi's popular product lines is the CPX Series of laboratory DC power supply. There are tens of thousands of CPX models in use worldwide. They can deliver larger currents at lower voltages thanks to PowerFlex control, allowing them to adjust the power to fit a wider range of applications. With a total power range of 360 watts to 840 watts, the line consists of single and dual output variants. A different kind of laboratory power supply called the CPX series was created to satisfy the demand for flexibility in the selection of voltage and current. In a traditional PSU, the power capability decreases directly with output voltage due to a fixed current limit.

Free UAE shipping available
- Specifications
- Features
- Downloads
Current range | 0A to 20A |
Display | Dual 4-digit meters, 10mm (0·39�) LED |
Input voltage | 110 to 240 volts +/-10% 50/60Hz. Installation Category II. |
Operating Temperature | +5oC to +40oC, 20% to 80% RH |
Power | Up to 420W subject to power envelope |
Storage Temperature | -40oC to + 70oC |
Voltage | 0V to 60V |
Isolated voltage tracking
Independent or synchronous output switching
Variable OVP trips
Full digital remote control and readback
RS-232, USB, GPIB and LAN (Ethernet)
Bench/System DC Power Supply, PowerFlex Regulation, Smart Analog Controls Dual Outputs, 2 x 60V/20A 420W, USB, RS232 LAN & GPIB Interfaces
Dual isolated outputs, 420 watts each
PowerFlex design gives variable voltage & current combinations within a maximum power range
True Analog controls - for ease of use
S-Lock function - instantly lock settings
