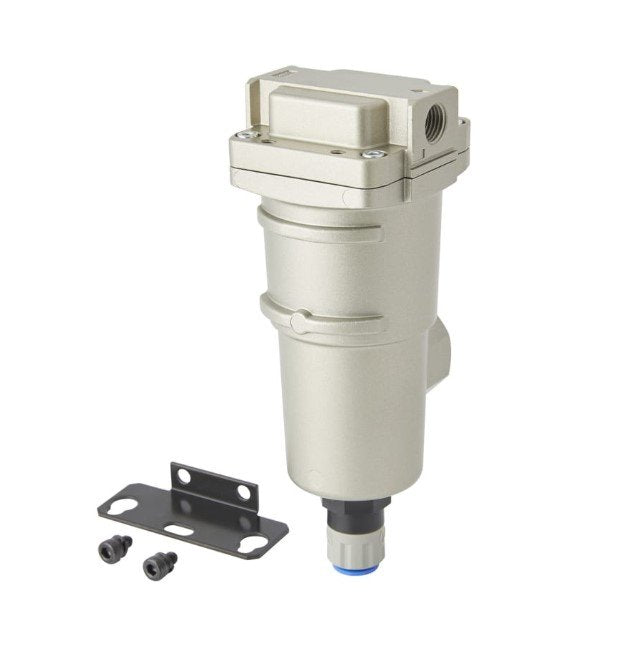

SMC AMG-EL650 | Water Separator
The AMG Series Water Separator is a highly efficient device designed to be installed on the air pressure line to remove water droplets from compressed air. It ensures that the compressed air is free from moisture, which can damage equipment and affect the performance of pneumatic systems. The separator is available in 7 sizes and offers various optional configurations to tailor it to specific application requirements. With a water removal rate of 99%, it ensures optimal air quality for industrial processes.
- Specifications
- Features
- Downloads
| Ambiant temperature | 5 to 60°C |
| Fluid | Compressed Air |
| Operating pressure | Maximum: 1.0 MPa |
| Operating pressure | Minimum: 0.05 MPa |
| Series | AMG |
| Type | Water Separator |
| Weight | 0.61 Kg |
- High Water Removal Efficiency:Removes up to 99% of water from compressed air, ensuring clean and dry air for machinery.
- Modular Connection:Allows for flexible integration with other components, supporting modular connection options for ease of installation.
- Maximum Operating Pressure:Rated for up to 1.0 MPa, making it suitable for a wide range of industrial air pressure systems.
- Variety of Sizes:Available in 7 different sizes, offering versatility to meet various application requirements.
- Optional Materials:Fluororubber material option, providing enhanced resistance to certain chemicals and temperatures.
- Adaptable to Medium Air Pressure:Designed to work effectively with medium air pressure systems, ensuring consistent performance.
- Drain Guide Option:Includes an optional drain guide, which helps in efficient draining and moisture removal.
- IN-OUT Reversal Direction:Features IN-OUT direction reversal, offering installation flexibility.
- Degreasing Wash Option:Optional degreasing wash for applications where extra cleanliness is required in the air supply system.
- White Vaseline Option:White vaseline can be applied to enhance the lubrication and protection of the system during operation.
