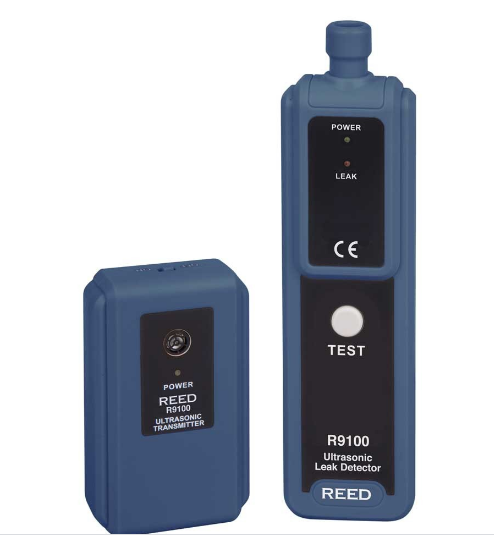

REED R9100 | Ultrasonic Leak Detector | 40 kHz Transmitter
The REED R9100 converts ultrasound from industrial machinery into recognisable audible sounds so the condition of individual components can be assessed. A 40 kHz transmitter helps pinpoint leaks, and headphones are included for loud environments.
- Ultrasound converted to audible sound
- 40 kHz transmitter for leak location
- Headphones included
- Receiver 115 g, transmitter 90 g
- 2 x 9V batteries; CE and RoHS
- Specifications
- Features
- Downloads
| Part Number | R9100 |
| Brand | REED |
| Transmitter Frequency | 40 kHz |
| Included | Receiver, transmitter, headphones |
| Dimensions | Receiver: 7.6 x 2 x 1.2" (192 x 50 x 30 mm) Transmitter: 3.9 x 2.3 x 1.1" (101 x 59 x 28 mm) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Power Supply | 2 x 9V Batteries |
| Product Certifications | CE, RoHS |
| Storage Temperature | -4 to 122°F (-20 to 50°C) |
| Weight | Receiver: 4.1 oz (115 g) Transmitter: 3.2 oz (90 g) |
- Locates leaks generated by pressure, vacuum, water, gas or air
- Visible (LED) and Audible (ticking) alarms assist in pinpointing leaks
- Earphone jack for loud environments (earphones included)
- User adjustable sensitivity wheel
- Ultrasonic Transmitter generates a 40 kHz signal
