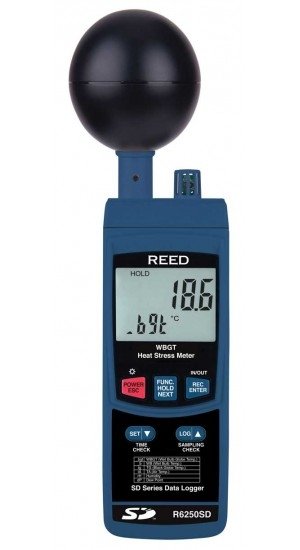

REED R6250SD | Data Logging Heat Stress Meter | WBGT, SD Card
The REED R6250SD heat stress meter measures temperature, humidity and direct or radiant sunlight to give Wet Bulb Globe Temperature (WBGT), from which it calculates a 'feels like' temperature. It has a user-adjustable WBGT audible alarm and settings for indoor measurement.
- SD card logging (max 16 GB): up to 99 manual readings or automatic at 1-3600 s
- Excel file output without software
- Backlit dual LCD with data hold and max/min
- 75 mm black brass globe
- CE marked; 1.1 lb (515 g)
- Specifications
- Features
- Downloads
| Part Number | R6250SD |
| Brand | REED |
| Dimensions | Instrument: 7.0 x 2.7 x 1.8" (177 x 68 x 45 mm) Black Brass Ball Diameter: 2.9" (75 mm) |
| Weight | 1.1lb (515g) |
| Display | 4-digit dual LCD |
| Operating Range | 32 to 122 °F (0 to 50 °C) |
| Operating Humidity Range | 10 to 85% |
| Measurement | WBGT, temperature, humidity |
| Product Certifications | CE |
| Storage Temperature | 14 to 140 °F (-10 to 60 °C) |
| Response Time | 1 second |
Measures temperature, humidity, dew point, wet bulb, black globe, indoor/outdoor WBGT
Wet Bulb Globe Temperature (WBGT) considers the effects of temperature, humidity and direct or radiant sunlight
In/Out function displays the WBGT value with or without direct sun exposure
Black Globe Temperature (TG) monitors the effects of direct solar radiation on an exposed surface
Adjustable audible alarm
User selectable unit of measure (°F or °C)
Data hold and Max/Min functions
Real-time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Tripod mount for long-term monitoring
Low battery indicator and auto shut off
