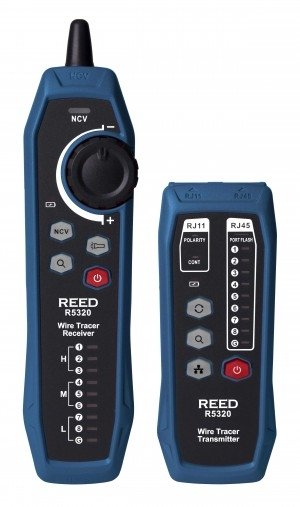

REED R5320 | Wire Tracer and Circuit Testing Kit | RJ45/RJ11, Built-in NCV
The REED R5320 wire tracer identifies and tests RJ45 (Ethernet), RJ11 (telephone) and other non-energised lines, using the supplied alligator clip adapter. It locates wires, validates cable connections, checks telephone line continuity and polarity, and has a built-in non-contact voltage detector.
- Traces RJ45, RJ11 and other non-energised lines
- Alligator clip adapter included
- Telephone line continuity and polarity checks
- Built-in non-contact voltage detector
- 1050 mAh rechargeable Li-ion battery
- Specifications
- Features
- Downloads
| Part Number | R5320 |
| Brand | REED |
| Compatible Lines | RJ45, RJ11, non-energised wires |
| NCV | Built-in |
| Dimensions | Transmitter: 5.1 x 2 x 1.1" (130 x 51 x 28mm) Receiver: 7.8 x 1.9 x 1.3" (197 x 48 x 34mm) |
| Operating Humidity Range | 20 to 75% |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Power Supply | 1050mAh rechargeable Li-ion battery |
| Weight | Transmitter: 3.4oz (95g) Receiver: 4.5oz (127g) |
- Test modes include; identifying and locating wires, validating cable/line connections, verifying telephone line continuity/line polarity
- Modular adapters provide direct connection to RJ45 and RJ11 wiring
- Alligator clip adapter allows for easy connection to non-terminated cables
- Adjustable sensitivity wheel improves wire identification and eliminates false detection
- Visual (flashing LEDs) and audible (pulsating beeper) indicators
- Integrated flashlight supports applications in low lit environments
- Built-in non-contact voltage detector
- Earphone jack for loud environments (earphones sold separately)
- Rechargeable batteries
- Low battery indicator and auto shut-off
