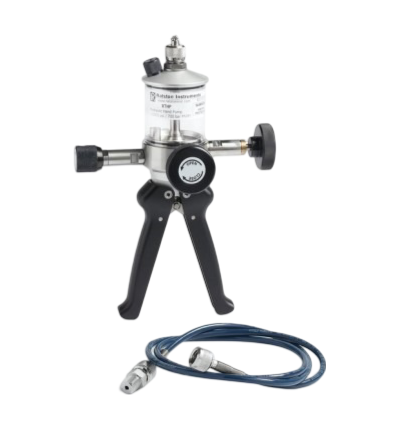

Ralston XTHP-0000 | Hydraulic Hand Pump with 3' hose | 10,000 psi
This hydraulic pump, which is strong and manually driven, can rapidly produce high pressure up to 10,000 psi (70 MPa) without the need to lock a stroke-limiting knob. This pump offers consistent pressure and is compatible with the majority of fluid media. It also includes a Quick-test stainless-steel hose.
- Specifications
- Features
- Downloads
| Burst Pressure | 40,000 psi/2760 bar/275 MPa |
| Dimensions | 5.7 x 7.5 x 10.6" (14.48 x 19.05 x 26.92 cm) |
| Material | Pump: Anodized aluminum, stainless steel, delrin, polysulfone Seal: Teflon, Viton |
| Maximum Pressure | Hand Pump 10,000 psi/700 bar/70 MPa |
| Media Compatibility | Alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, petroleum based oil, windshield washer fluid, transmission fluid, light motor oil, Ralston calibration oil |
| Operating Temperature | -15 to 140°F (-26 to 60°C) |
| Outlet | Male Quick-test XT, Male Quick-test XT with cap and chain |
| Pressure Media | Liquid |
| Reservoir Volume | 4.2 fluid oz |
| Resolution | Fine Adjustment Resolution 0.01 psi/0.07 mbar/0.00 kPa |
| Weight | 3.12 lbs (1.41 kg) |
- Pressure can be generated up to 10,000 psi (70 MPa).
- resilient to shock.
- Viton seals are resistant to the majority of processed fluids, such as alcohol, mineral oil, hydraulic oil, and ethylene glycol.
- has a high volume primer to swiftly clear the valve of air.
- Once the gross test pressure is reached, a fine/adjust piston can gradually raise or lower the pressure to reach a precise setting.
- Testing of gauges, transmitters, flow computers, and chart recorders for pressure calibration.
Testing of pressure switches.
Field testing of liquid PSVs.
field testing in situations where power inputs are inappropriate or nonexistent.
